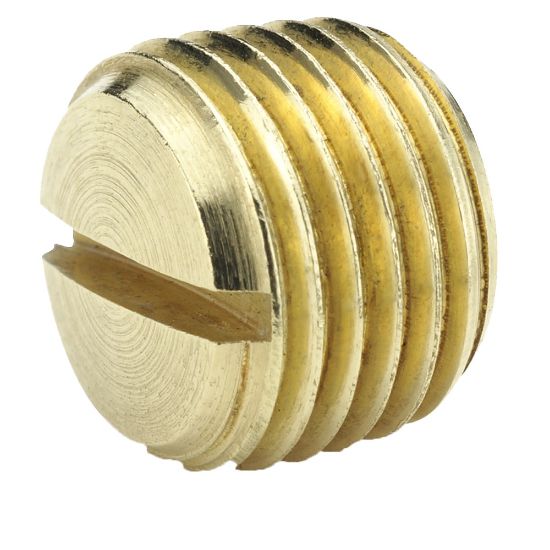

220P-4 - Brass Pipe Fittings

Name: 220P-4 - Brass Pipe Fittings
SKU: 220P-4
Price: 3.10 USD
Availability: InStock

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Manufacturer: Parker

Availability:

10 in stock

Kansas City, KS

Partner Available:

315 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 220P-4

$3.10/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Length	n/a
Connection 1 Size	1/4"	Connection 1 Type	Male Pipe
Product Style	Slotted Head Plug	Division	Fluid System Connectors Division
Maximum Operating Pressure	68 bar	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-53 °C	Body Material	Brass
Specifications Met	SAE J530, SAE J531	Tube Material	Copper, Brass, Iron Pipe
