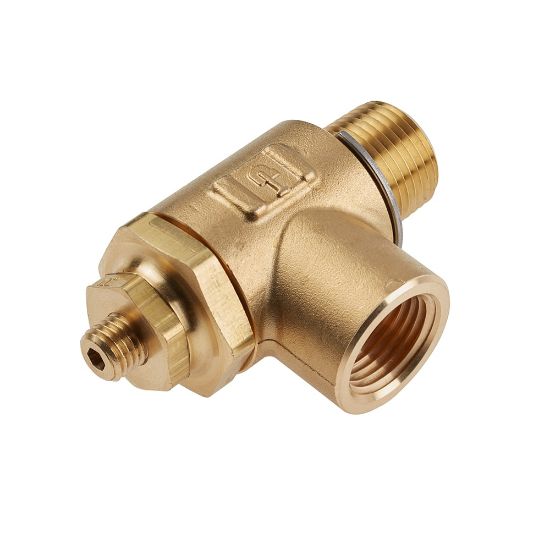

FC703-4 - Brass Pneumatic Flow Controls

Name: FC703-4 - Brass Pneumatic Flow Controls
SKU: FC703-4
Price: 56.93 USD
Availability: InStock

Parker's Brass Pneumatic Flow Controls offer precise adjustment and accuracy for controlling the flow of air. The brass body meets the UL94 V-0 standard for flame resistance.

Manufacturer: Parker

Availability:

103 in stock

Kansas City, KS	100
Wichita, KS	3

Partner Available:

55 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FC703-4

$56.93/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4 inch
Connection 1 Type	Female NPT Thread	Connection 2 Size	1/4 inch
Product Style	Pipe to Pipe	Valve Configuration	Meter Out
Connection 2 Type	Male NPT Thread	Media	Air
Product Type	Pneumatic Flow Control	Silicone Free	Yes
Valve Configuration	Meter Out	Adjustment Mechanism	Allen wrench adjustment screw
Minimum Operating Temperature	0° F / -17.8° C	Product Style	Female Pipe to Pipe
Maximum Operating Temperature	+200° F / +93.3° C	Minimum Operating Pressure	15 psi / 1 bar
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Maximum Operating Pressure	150 psi / 10.34 bar	Body Material	Brass
Division	Fluid System Connectors Division	Industry	Automotive, Industrial Manufacturing Equipment, Material Handling, Semiconductor
Application	Automotive	Brand	Parker
Specifications Met	UL94 V-0	Region of Origin	United States of America

Product resources

Literature and Reference Materials

Robotic Welding Solutions - Bul. 3501-RWS (PDF)

Compliance, Certifications & Safety

Certificate of conformity - PFAS (PDF)
