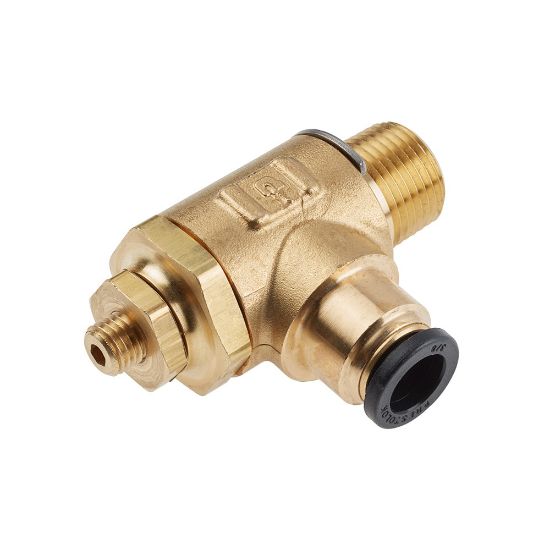

FC703-4-4 - Brass Pneumatic Flow Controls

Parker's Brass Pneumatic Flow Controls offer precise adjustment and accuracy for controlling the flow of air. The brass body meets the UL94 V-0 standard for flame resistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU FC703-4-4

$60.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	1/4 inch
Valve Configuration	Meter Out	Connection 1 Type	Push-to-Connect
Product Style	Tube to Pipe	Connection 1 Size	1/4 inch
Connection 2 Type	Male NPT Thread	Maximum Operating Temperature	+200° F / +93.3° C
Product Type	Pneumatic Flow Control	Media	Air
Valve Configuration	Meter Out	Technology	Pneumatics
Division	Fluid System Connectors Division	Industry	Automotive, Industrial Manufacturing Equipment, Material Handling, Semiconductor
Minimum Operating Pressure	15 psi / 1 bar	Division	Fluid System Connectors Division
Body Material	Brass	Region of Origin	United States of America
Maximum Operating Pressure	150 psi / 10.34 bar	Adjustment Mechanism	Allen wrench adjustment screw
Minimum Operating Temperature	0° F / -17.8° C	Silicone Free	Yes
Application	Packaging	Product Style	Tube to Pipe
Brand	Parker	Specifications Met	UL94 V-0
