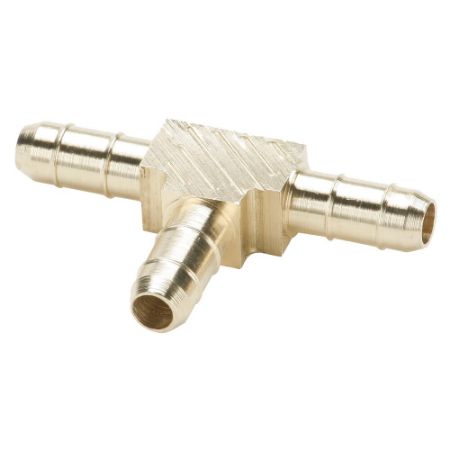

Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Style | Connection 3 Style | Connection 3 Thread Size (inch) | Shape | Connection 2 Thread Size (inch) | Connection 2 Tube O.D. (inch) | Connection 1 Style | Connection 1 Tube O.D. (inch) | Style | Division | Body Material | Tube Material | Maximum Operating Temperature | Minimum Operating Temperature | Maximum Operating Pressure | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20-4 | 2 Limited Stock | 66 in stock | $1.98/each | EA | na | na | na | Plug | na | na | Barb | 1/4 | Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 10 bar | 0.05518884892086331 lb | |
| 20-4-5/32 | 6 in stock | 14 in stock | $3.05/each | EA | Barb | na | na | Plug | na | 5/32 | Barb | 1/4 | Tube | Fluid System Connectors Division | Brass | Polyethylene | 32 °C | -53 °C | 150 psi | 0.05518884892086331 lb | |
| 20-6 | 38 in stock | 36 in stock | $3.47/each | EA | na | na | na | Plug | na | na | Barb | 3/8 | Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 10 bar | 0.05518884892086331 lb | |
| 20-8 | Backordered | 28 in stock | $6.90/each | EA | na | na | na | Plug | na | na | Barb | 1/2 | Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 10 bar | 0.05518884892086331 lb | |
| 220-4-2 | 3 in stock | 2525 in stock | $16.00/each | EA | Barb | Female Pipe | 1/8 | Adapter Tee | na | 1/4 | Barb | 1/4 | Tube to Female Pipe | Fluid System Connectors Division | Brass | Polyethylene | 32 °C | -53 °C | 10 bar | 0.27594424460431655 lb | |
| 22-4 | 68 in stock | 748 in stock | $2.23/each | EA | Barb | na | na | Union | na | 1/4 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 32 °C | -65 °F | 10 bar | 0.054433633093525176 lb | |
| 224-4 | 2829 in stock | 1475 in stock | $5.40/each | EA | Barb | na | na | Tee | na | 1/4 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 150 psi | 0.028406025179856114 lb | |
| 224-4-4-5/32 | 4 in stock | 121 in stock | $8.85/each | EA | Barb | na | na | Tee | na | 5/32 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 32 °C | -53 °C | 150 psi | 0.012949640287769784 lb | |
| 22-4-5/32 | 49 in stock | 169 in stock | $4.39/each | EA | Barb | na | na | Union | na | 5/32 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 150 psi | 0.0683453237410072 lb | |
| 224-5/32 | 4 in stock | 225 in stock | $8.03/each | EA | Barb | na | na | Tee | na | 5/32 | Barb | 5/32 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 32 °C | -53 °C | 10 bar | 0.027594424460431654 lb | |
| 22-4-6 | 153 in stock | 279 in stock | $3.66/each | EA | Barb | na | na | Union | na | 3/8 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 150 psi | 0.05681205035971223 lb | |
| 224-6 | 1404 in stock | 1044 in stock | $6.08/each | EA | Barb | na | na | Tee | na | 3/8 | Barb | 3/8 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 | -65 | 150 | 0.028406025179856114 | |
| 224-6-6-4 | Backordered | 363 in stock | $7.43/each | EA | Barb | na | na | Tee | na | 1/4 | Barb | 3/8 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 10 bar | 0.028705035971223022 lb | |
| 224-6-6-5/32 | Backordered | 411 in stock | $13.75/each | EA | Barb | na | na | Tee | na | 5/32 | Barb | 3/8 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 150 psi | ||
| 22-4-8 | 34 in stock | 95 in stock | $6.39/each | EA | Barb | na | na | Union | na | 1/2 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 150 psi | 0.11037769784172662 lb | |
| 224-8 | 26 in stock | 91 in stock | $10.00/each | EA | Barb | na | na | Tee | na | 1/2 | Barb | 1/2 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 150 psi | 0.05681205035971223 lb | |
| 224-8-8-4 | 3 in stock | 59 in stock | $11.47/each | EA | Barb | na | na | Tee | na | 1/4 | Barb | 1/2 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 150 psi | 0.054433633093525176 lb | |
| 224-8-8-6 | Backordered | 89 in stock | $15.76/each | EA | Barb | na | na | Tee | na | 3/8 | Barb | 1/2 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -65 °F | 150 psi | ||
| 22-5/32 | 28 in stock | 123 in stock | $3.05/each | EA | Barb | na | na | Union | na | 5/32 | Barb | 5/32 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 150 psi | 0.05518884892086331 lb | |
| 225-4-4 | 2500 in stock | 337 in stock | $4.24/each | EA | Barb | na | na | 90° Elbow | na | 1/4 | Barb | 1/4 | Tube to Tube | Fluid System Connectors Division | Brass | Polyethylene | 90 °F | -53 °C | 10 bar | 0.027594424460431654 lb |
