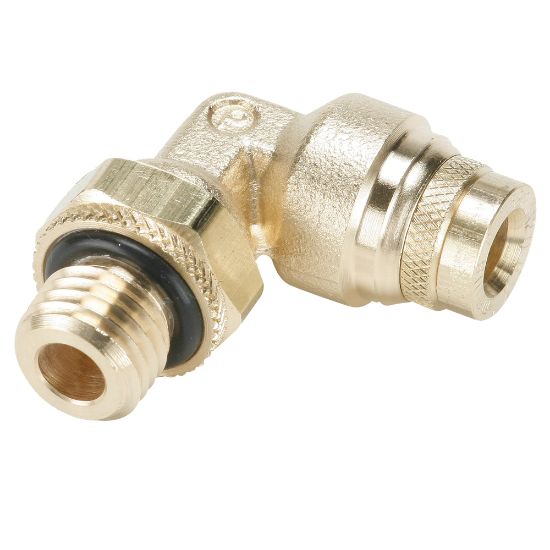

C8UPMTB6-M16 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 56 days
Partner Available:	4 in stock

SKU C8UPMTB6-M16

$98.98/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Push-to-Connect
Product Style	Tube to Pipe	Connection 2 Size	M16x1.5
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Size	16 mm	Connection 2 Type	Male M16 Thread
Shape	Rigid 90° Elbow	Brand	Parker
Application	Air Brake Systems	Specifications Met	DIN 74324
Materials of Construction	Brass (Collet)	Configuration	Tube to Pipe
Shape	Straight	Body Material	Brass
Maximum Operating Pressure	250 psi	Connection 1 Type	Push-to-Connect
Division	Fluid System Connectors Division	Connection 2 Size	M16x1.5 mm
Division	Fluid System Connectors Division	Maximum Operating Temperature	93 °C
Seal Material	Buna N (O-Ring)	Tube Material	Nylon Tubing SAE J844 Type A & B
Technology	Fluid & Gas Handling	Connection 3 Size	n/a
Connection 2 Type	Metric	Minimum Operating Temperature	-40 °C
Connection 1 Size	n/a
