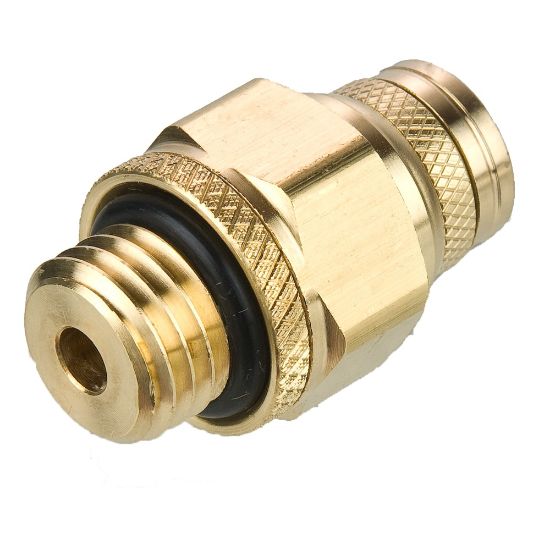

F8UPMTB8-M16 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 47 days
Partner Available:	Backordered

SKU F8UPMTB8-M16

$38.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Type	Push-to-Connect	Product Style	Tube to Pipe
Connection 2 Size	M16x1.5	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Size	16 mm
Connection 2 Type	Male M16 Thread	Division	Fluid System Connectors Division
Body Material	Brass	Shape	Connector
Division	Fluid System Connectors Division	Application	Accessories
Materials of Construction	Brass (Collet)	Specifications Met	DIN 74324
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Maximum Operating Pressure	250 psi	Connection 1 Size	n/a
Connection 2 Type	Metric	Brand	Parker
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	200 °F
Connection 2 Size	n/a	Seal Material	Buna N (O-Ring)
Connection 3 Size	n/a	Tube Material	Nylon Tubing SAE J844 Type A & B
Technology	Fluid & Gas Handling
