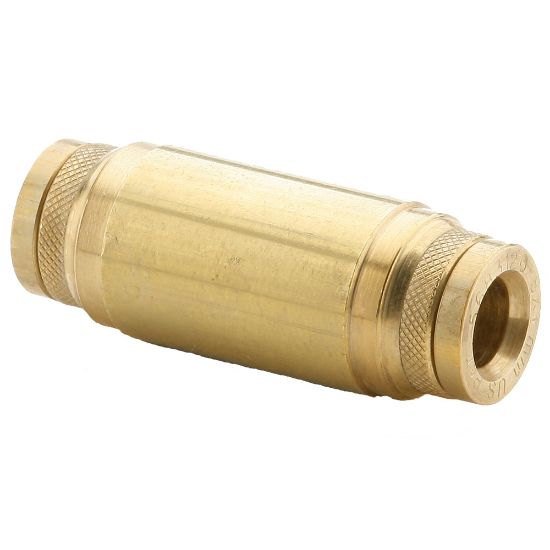

HPMTB6 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	20 in stock

SKU HPMTB6

$57.47/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Connection 1 Type	Push-to-Connect	Product Style	Tube to Tube
Connection 2 Size	6 mm	Connection 2 Type	Push-to-Connect
Shape	Union	Connection 3 Size	N/A
Connection 3 Type	N/A	Body Material	Brass
Shape	Union	Division	Fluid System Connectors Division
Maximum Operating Pressure	250 psi	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Division	Fluid System Connectors Division
Connection 2 Size	n/a	Seal Material	Buna N (O-Ring)
Maximum Operating Temperature	200 °F	Connection 1 Size	6 mm Tube O.D.
Connection 3 Size	n/a	Tube Material	Stainless Steel
Technology	Fluid & Gas Handling	Specifications Met	DIN 74324
Materials of Construction	Brass (Collet)	Application	Accessories
Minimum Operating Temperature	-40 °F	Brand	Parker
Connection 2 Type	Push-to-Connect
