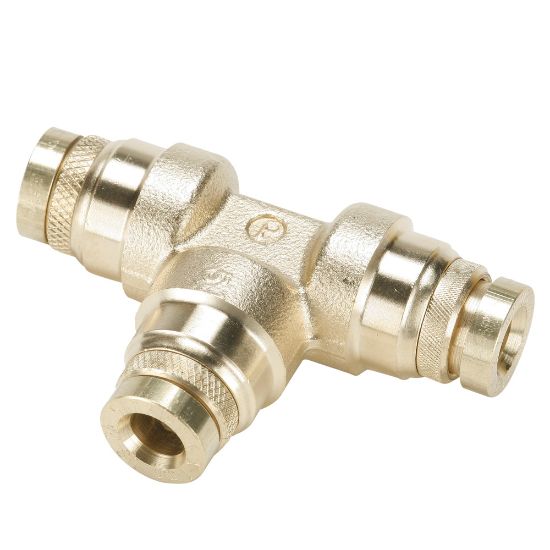

JPMTB12 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 57 days
Partner Available:	Backordered

SKU JPMTB12

$56.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 1 Size	12 mm	Connection 2 Size	12 mm
Connection 1 Type	Push-to-Connect	Product Style	Tube to Tube
Connection 2 Type	Push-to-Connect	Connection 3 Size	12 mm
Connection 3 Type	Push-to-Connect	Division	Fluid System Connectors Division
Shape	Tee	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Connection 3 Size	n/a
Tube Material	Nylon DIN 73378	Connection 2 Size	n/a
Maximum Operating Temperature	200 °F	Seal Material	Buna N (O-Ring)
Brand	Parker	Application	Accessories
Specifications Met	DIN 74324	Connection 1 Size	12 mm Tube O.D.
Connection 2 Type	Push-to-Connect	Minimum Operating Temperature	-40 °F
Body Material	Brass	Connection 1 Type	Push-to-Connect
Maximum Operating Pressure	17 bar	Materials of Construction	Brass (Collet)
Configuration	Tube to Tube
