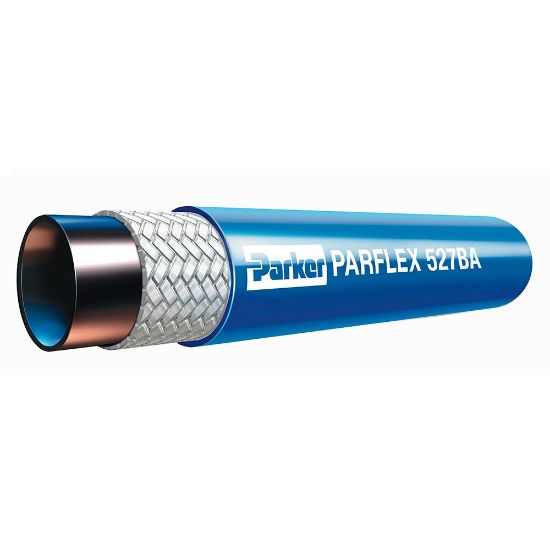

527BA-3 - Breathing Air Refill Hose - 527BA

Name: 527BA-3 - Breathing Air Refill Hose - 527BA
SKU: 527BA-3
Price: 9.13 USD
Availability: InStock

Parkers’ Breathing Air Refill Hose is a 7,000 psi working pressure hose. It complies with CGA G7.1-1 Grade E Breathing Air Standards and NFPA 1901 requirements for Fire Apparatus.

Manufacturer: Parker

Availability:

20 in stock

Wichita, KS	14
TOPEKA, KS	6

Partner Available:

1691 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 527BA-3

$9.13/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Outside Diameter	10.9 mm	Weight	0.05 lb/ft
Maximum Operating Pressure	7000 psi	Inside Diameter	3/16 inch
Division	Parflex Division	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	CG Series	Maximum Operating Temperature	82 °C
Media	Air	Design Factor	4:1
Cover Material	Polyurethane	Specifications Met	CGA G7.1, Grade E (Breathing Air Standards)
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	Fiber
Minimum Bend Radius	1-1/2 inch	Application	Pneumatics
