*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

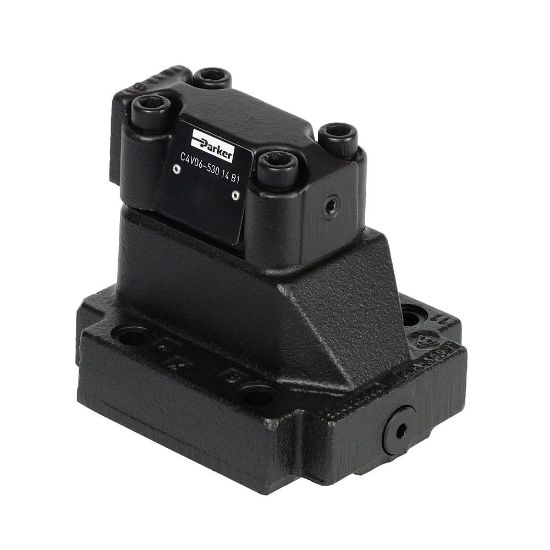

C4V105306B5

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU C4V105306B5

$2,615.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Connection	NG32 / CETOP 10
Operation Type	Direct	Maximum Flow Rate	450 lpm
Cracking Pressure	1.2 bar	Material	Cast Iron
Connection Type	ISO 5781	Configuration	Direct Operated
Mounting Option	Subplate	Seal Material	FPM
Minimum Operating Temperature	-20 °C	Maximum Operating Temperature	60 °C
Actuation Type	Direct	Product Series	Check Valve
