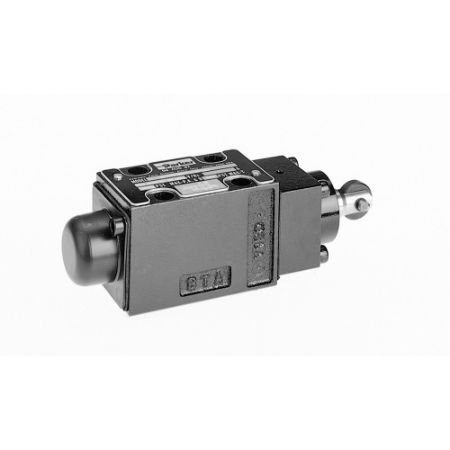

Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D1VC, D1VD and D1VG directional control valves are available in 2-position and conform to NFPA’s D03, CETOP 3 mounting patterns.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Short stroke option
• Two styles available (D1VC & D1VG)
• Choice of two cam roller positions (D1VC & D1VD)
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Short stroke option
• Two styles available (D1VC & D1VG)
• Choice of two cam roller positions (D1VC & D1VD)
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Size | Maximum Flow Rate | Maximum Operating Pressure | Mounting Type | Actuation Type | Seal Material | Minimum Operating Temperature | Mounting Type | Spool Code | Actuation Type | Weight | Maximum Operating Pressure | Body Material | Valve Type | Maximum Operating Temperature | Division | Spool Position | Maximum Flow Rate | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1VC001BN | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG6 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | -4 °F | Manifold | All Ports Blocked | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 22.0 Gal/min | NFPA3 | |
| D1VC001BNP05 | Backordered | Backordered | $709.60/each | EA | NFPA3; CETOP 3; NG7 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | 3-Position | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 22.0 Gal/min | NG6 | ||
| D1VC001BV | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG9 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Fluorocarbon | Manifold | All Ports Blocked | Cam (90° to mounting surface) | 3.2 lb | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 22.0 Gal/min | NFPA3 | ||
| D1VC001HN | Backordered | Backordered | $709.60/each | EA | NFPA3; CETOP 3; NG12 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | 4-Way | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | CETOP 3 | ||
| D1VC001HNP05 | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG13 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | 4-Way | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | CETOP 3 | ||
| D1VC002BN | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG18 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | 4-Way | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 22.0 Gal/min | NG6 | ||
| D1VC002BNP05 | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG19 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | 3-Position | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 22.0 Gal/min | NFPA3 | ||
| D1VC002BV | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG21 | 22 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Fluorocarbon | Manifold | All Ports Open | Cam (90° to mounting surface) | 1.44 kg | 345 bar | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | CETOP 3 | ||
| D1VC004BN | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG30 | 12 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | 4-Way | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 12.0 Gal/min | NG6 | ||
| D1VC004BV | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG33 | 12 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Fluorocarbon | Manifold | 4-Way | Cam (90° to mounting surface) | 3.2 lb | 345 bar | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 12.0 Gal/min | CETOP 3 | ||
| D1VC008BV | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG45 | 12 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Fluorocarbon | Manifold | A & B Blocked | Cam (90° to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 12.0 Gal/min | NFPA3 | ||
| D1VC082HN | Backordered | Backordered | $830.76/each | EA | NFPA3; CETOP 3; NG84 | 8 GPM | 3000 PSI | Subplate | Cam (90° to mounting surface) | Nitrile | Manifold | P Port Blocked | Cam (90° to mounting surface) | 1.44 kg | 345 bar | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 8.0 Gal/min | NFPA3 | ||
| D1VD001BN | Backordered | Backordered | $709.60/each | EA | NFPA3; CETOP 3; NG90 | 22 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Nitrile | Manifold | 4-Way | Cam (parallel to mounting surface) | 3.2 lb | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | NFPA3 | ||
| D1VD001BNP05 | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG91 | 22 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Nitrile | Manifold | 3-Position | Cam (parallel to mounting surface) | 3.2 lb | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | CETOP 3 | ||
| D1VD001BV | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG93 | 22 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Fluorocarbon | Manifold | 3-Position | Cam (parallel to mounting surface) | 3.2 lb | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "A" port end | 22.0 Gal/min | CETOP 3 | ||
| D1VD001HN | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG96 | 22 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Nitrile | Manifold | 3-Position | Cam (parallel to mounting surface) | 1.44 kg | 345 bar | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | NFPA3 | ||
| D1VD001HV | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG99 | 22 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Fluorocarbon | Manifold | All Ports Blocked | Cam (parallel to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | Spring Offset Operator at "B" port end | 22.0 Gal/min | CETOP 3 | ||
| D1VD002BN | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG102 | 22 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Nitrile | Manifold | 4-Way | Cam (parallel to mounting surface) | 1.44 kg | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 22.0 Gal/min | CETOP 3 | ||
| D1VD004BN | Backordered | Backordered | $745.08/each | EA | NFPA3; CETOP 3; NG114 | 12 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Nitrile | Manifold | 3-Position | Cam (parallel to mounting surface) | 3.2 lb | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 12.0 Gal/min | CETOP 3 | ||
| D1VD004BNP05 | Backordered | Backordered | $709.60/each | EA | NFPA3; CETOP 3; NG115 | 12 GPM | 3000 PSI | Subplate | Cam (parallel to mounting surface) | Nitrile | Manifold | 3-Position | Cam (parallel to mounting surface) | 3.2 lb | 5000 psi | Steel | Industrial Cam Operated Directional Control Valve | 140 °F | Hydraulic Valve Systems Division | 2-Position | 12.0 Gal/min | NG6 |
