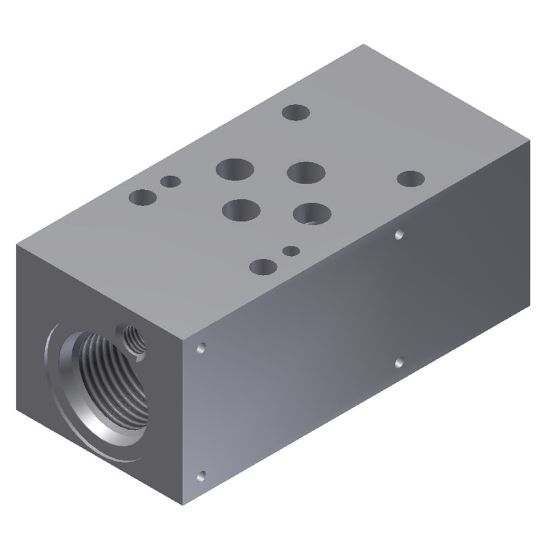

BD03-ABT-S - Cartpak Bodies

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU BD03-ABT-S

$290.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Seal Material	Nitrile	Type/Configuration	A and B Ports to Tank
Number of Cavities	2	Weight	0.97 kg
Maximum Operating Pressure	350 bar	Body Material	Steel
Division	Hydraulic Systems Division	Configuration	A and B Ports to Tank
Flow Rate	n/a	Actuation Type	n/a
Operating Temperature	-30 to 250 °C	Cavity Size	C10-2
Minimum Operating Temperature	-30 °F	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	n/a	For Fluid Type	Synthetic Hydraulic Fluids
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
