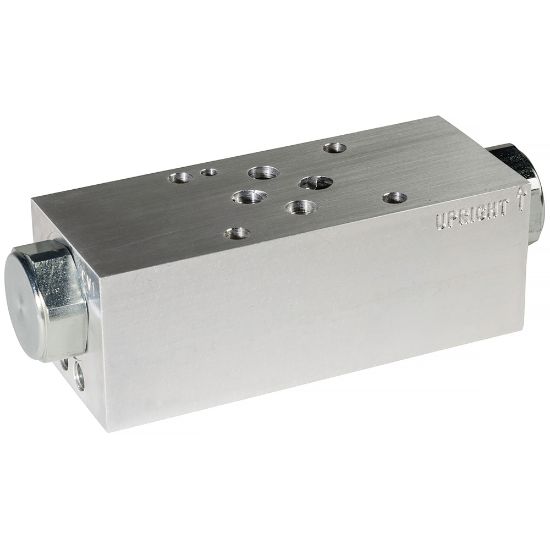

BD03-POC-A - Cartpak Bodies

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU BD03-POC-A

$205.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Aluminum
Seal Material	Nitrile	Type/Configuration	Dual PO Check (A and B to Tank)
Flow Rate	n/a	Actuation Type	n/a
Configuration	Dual PO Check (A and B to Tank)	Operating Temperature	-34 to 121 °C
Minimum Operating Temperature	-34 °C	Cavity Size	C10-2
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	n/a
For Fluid Type	Synthetic Hydraulic Fluids	Maximum Operating Temperature	121 °C
Seal Material	Nitrile	Body Material	Aluminum
Number of Cavities	2	Weight	0.34 kg
Maximum Operating Pressure	210 bar	Division	Hydraulic Systems Division
