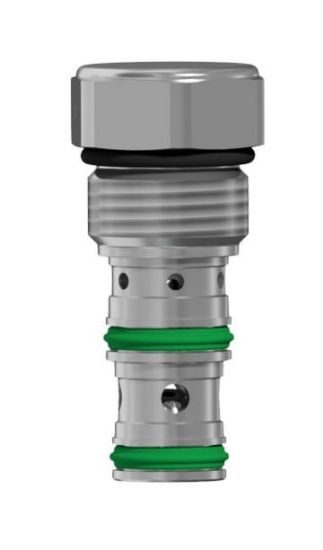

CSH101B - Cartridge Ball Type Shuttle Valve

Name: CSH101B - Cartridge Ball Type Shuttle Valve
SKU: CSH101B
Price: 35.02 USD
Availability: LimitedAvailability

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Manufacturer: Parker

Availability:

2 Limited Stock

Wichita, KS

Partner Available:

15 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CSH101B

$35.02/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	10 GAL/MIN, 38 L/MIN
Seal Material	Nitrile	Valve Material	Hardened Steel
Maximum Operating Temperature	250 °F	Maximum Inlet Pressure Rating	5000 psi
Function	Diverter	Minimum Operating Temperature	-34 °C
Cavity Size	C10-3	Configuration	3-Way Ball Type
Actuation Type	Pressure Sensing	Flow Rate	38 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to 121 °C
Maximum Operating Pressure	5000 psi	Weight	0.14 kg
Installation Torque	65 Nm	Body Material	n/a
Filter Efficiency Rating	ISO 4406 18/16/13	Operation Type	Automatic
Standard Flow Rate Setting	n/a	Division	Hydraulic Systems Division
Maximum Flow Rate	10 Gal/min	Leak Rate	10
For Fluid Type	Mineral-based Hydraulic Fluids
