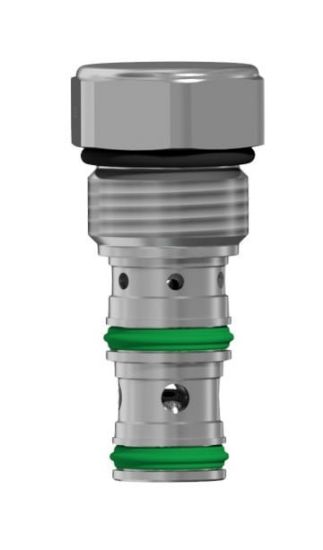

CSH101BV - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CSH101BV

$42.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	10 GAL/MIN, 38 L/MIN
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Flow Rate	10 Gal/min
Standard Flow Rate Setting	n/a	Maximum Operating Temperature	204 °C
Valve Material	Steel	Seal Material	Fluorocarbon
Leak Rate	10	Function	Diverter
Maximum Inlet Pressure Rating	5000 psi	Cavity Size	C10-3
Minimum Operating Temperature	-15 °F	Operating Temperature	-15 to 400 °F
Flow Rate	10 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Actuation Type	Pressure Sensing	Body Material	n/a
Filter Efficiency Rating	ISO 4406 18/16/13	Weight	0.3 lb
Maximum Operating Pressure	5000 psi	Configuration	3-Way Ball Type
Division	Hydraulic Systems Division	Installation Torque	48 lb-ft
Operation Type	Automatic
