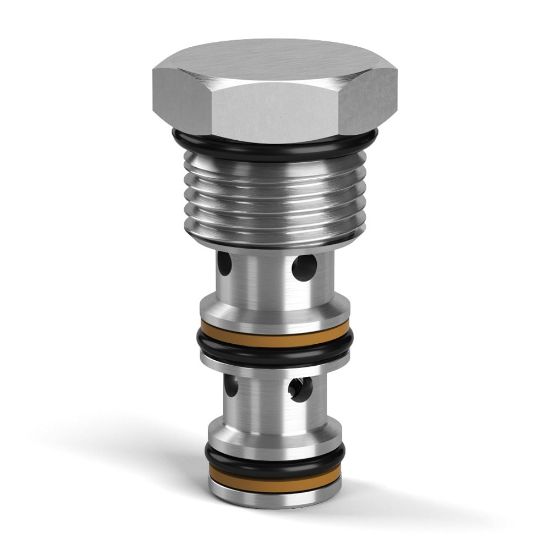

K02A3N - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	36 in stock

SKU K02A3N

$136.86/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	13 GAL/MIN, 50 L/MIN
Seal Material	Nitrile	Maximum Inlet Pressure Rating	420 bar
Valve Material	All parts steel. All operating parts hardened steel	Leak Rate	10 @ 5000 PSI (350 BAR) drops/min
Maximum Flow Rate	13 Gal/min	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Minimum Operating Temperature	-34 °C	Cavity Size	C08-3
Function	Diverter	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	3-way Ball Type	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-34 to +121 °C	Actuation Type	Pressure Sensing
Flow Rate	13 Gal/min	Standard Flow Rate Setting	7 Gal/min
Operation Type	Automatic	Division	Mobile Hydraulic Systems Division Europe
Maximum Operating Pressure	6000 psi	Weight	0.15 lb
Body Material	N/A	Installation Torque	30 lb-ft
