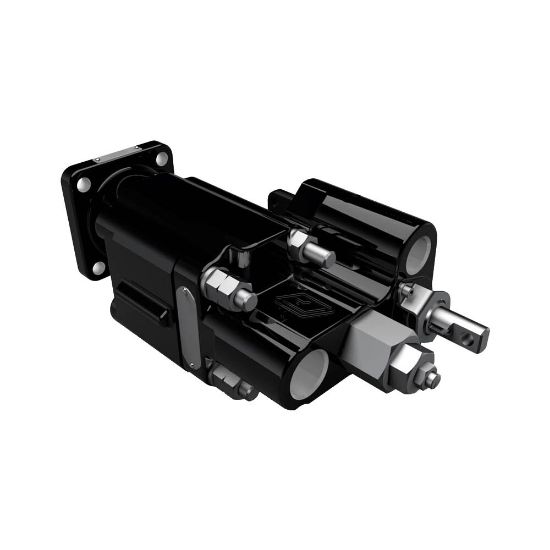

3149325229 - Cast Iron Pumps – C101/C102 Series

Parker’s C101/C102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 27.7 gpm.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	32 in stock

SKU 3149325229

$1,508.39/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	CCW
Additional Options	No Air Shift	Displacement	6.38 cu. in. / 104.5 cc
Configuration	4-BOLT SQUARE	Pressure Rating (psi)	2500 PSI
Division	Pump & Motor Division	Product Type	Hydraulic Pump Gear, Fixed Displacement
Mounting Option	SAE	Media	n/a
Flow Rate	n/a	Port Type	Tapered Thread
Maximum Flow Rate	n/a	Maximum Operating Pressure	172 bar
Body Material	Cast Iron	Seal Material	TEFLON
Weight	32 kg (Max)	Port Connection	NPT
Operating Pressure	up to 172 bar	Control Method	n/a
Additional Options	n/a	Inlet Connection Size	1-1/4 inch
Filter Included	No	Sensor Type	n/a
Configuration	Single	For Fluid Type	Standard Hydraulic Fluids
Maximum Fluid Temperature	180 °F	Minimum Fluid Temperature	-20 °C
Drain Option	No	Shaft Type	SAE
Displacement	up to 6.4 inch3/rev	Direction of Rotation	Clockwise
Maximum Operating Speed	2400 RPM	Maximum Kinematic Viscosity	7500 SUS
Outlet Connection Size	NPT 1 inch (Cylinder)	Radial Load Capacity	n/a
Pump Type	Gear	Circuit Path	Open
Port Location	Rear Ports	Shaft Diameter	7/8 inch
Maximum Noise Level	n/a	Charge Pump Included	No
Maximum Displacement	6.4 inch3/rev	Thru-Drive Capability	No
Energy Recovery Capability	No	Minimum Kinematic Viscosity	50 SUS
