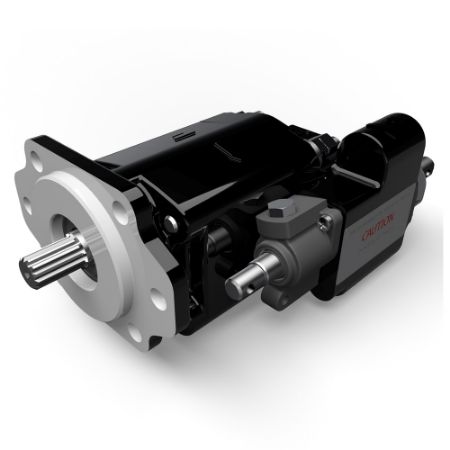

Cast Iron Pumps – G101/G102 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s G101/G102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.

Markets:
• Vocational & Municipal Equipment

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability

Applications:
• Dump Truck
• Dump Trailer

Technical Specifications:
• Flow is 16.9 gpm (64 lpm)
• Displacement is 3.94 cir (64.6 cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Rotation	Configuration	Additional Options	Energy Recovery Capability	Maximum Fluid Temperature	Inlet Connection Size	Maximum Kinematic Viscosity	Port Connection	Port Type	Pump Type	Flow Rate	Direction of Rotation	Operating Pressure	Outlet Connection Size	Displacement	Media	Product Type	Charge Pump Included	Filter Included	Port Location	Maximum Operating Speed	Division	Circuit Path	Radial Load Capacity	For Fluid Type	Seal Material	Maximum Flow Rate	Control Method	Thru-Drive Capability	Maximum Noise Level	Configuration	Minimum Fluid Temperature	Weight	Shaft Diameter	Maximum Operating Pressure	Body Material	Drain Option	Maximum Displacement	Mounting Option	Shaft Type	Minimum Kinematic Viscosity	Sensor Type
3089310047	Backordered	21 in stock	$1,322.91/each	EA	BI	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift	No	180 °F	NPT	7500 SUS	NPT	Tapered Thread	Fixed	n/a	Clockwise	up to 172 bar	NPT 3/4 inch (Tank-plugged)	up to 3.9 inch3/rev	n/a	G101	No	No	Rear Ports	2400 RPM	Pump & Motor Division	Open	n/a	Phosphate-ester	TEFLON	n/a	n/a	No	n/a	Single	-20 °C	20.4 kg (Max)	1 inch	2500 psi	Cast Iron (Grey)	No	64 cm3/rev	DIN	SAE	50 SUS	n/a
3089310416	Backordered	Backordered	$1,017.62/each	EA	CW	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift	No	80 °C	1-1/4 inch	7500 SUS	NPT	Tapered Thread	Fixed	n/a	Bi-Rotational	up to 2500 psi	NPT 3/4 inch (Tank-plugged)	up to 3.9 inch3/rev	n/a	G102	No	No	Rear Ports	2400 RPM	Pump & Motor Division	Open	n/a	Phosphate-ester	Buna-N	n/a	n/a	No	n/a	Single	0 °F	20.4 kg (Max)	7/8 inch	172 bar	Cast Iron (Grey)	No	3.9 inch3/rev	SAE	SAE	50 SUS	n/a
3089310418	Backordered	16 in stock	$1,322.91/each	EA	CCW	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift	No	180 °F	NPT	7500 SUS	NPT	Tapered Thread	Gear	n/a	Counterclockwise	up to 2500 psi	NPT 3/4 inch (Cylinder)	up to 3.9 inch3/rev	n/a	Hydraulic Pump Gear, Fixed Displacement	No	No	Rear Ports	2400 RPM	Pump & Motor Division	Open	n/a	Standard Hydraulic Fluids	Buna-N	n/a	n/a	No	n/a	Single	0 °F	45 lb (Max)	7/8 inch	172 bar	Cast Iron	No	64 cm3/rev	DIN	SAE	50 SUS	n/a
3089310905	Backordered	22 in stock	$1,509.46/each	EA	CCW	4 BOLT SQUARE, SAE B / ANSI 101-4	Air Shift Installed	No	80 °C	1-1/4 inch	7500 SUS	NPT	Tapered Thread	Fixed	n/a	Bi-Rotational	up to 172 bar	NPT 3/4 inch (Tank-plugged)	up to 64 cm3/rev	n/a	Hydraulic Pump Gear, Fixed Displacement	No	No	Rear Ports	2400 RPM	Pump & Motor Division	Open	n/a	Phosphate-ester	Buna-N	n/a	n/a	No	n/a	Single	0 °F	20.4 kg (Max)	7/8 inch	172 bar	Cast Iron	No	3.9 inch3/rev	DIN	SAE	50 SUS	n/a
