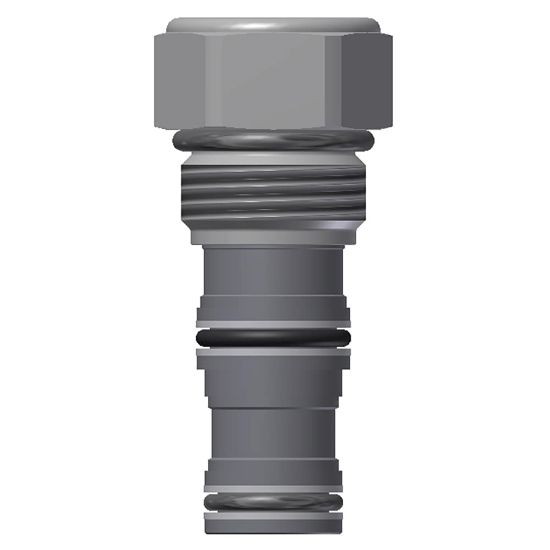

P08-3C - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU P08-3C

$113.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	Port 1 blocked
Cavity Size	C08	Seal Material	Nitrile
Number of Positions	3 way	Division	Hydraulic Systems Division
Weight	0.11 kg	Maximum Operating Pressure	5000 psi
Body Material	N/A	Installation Torque	49 Nm
Seal Material	Nitrile	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	N/A
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Minimum Operating Temperature	-34 °C	Cavity Size	C08
Configuration	Port 1 blocked	Operating Temperature	-30 to +250 °F
Actuation Type	N/A	Flow Rate	N/A
Number of Positions	3 way
