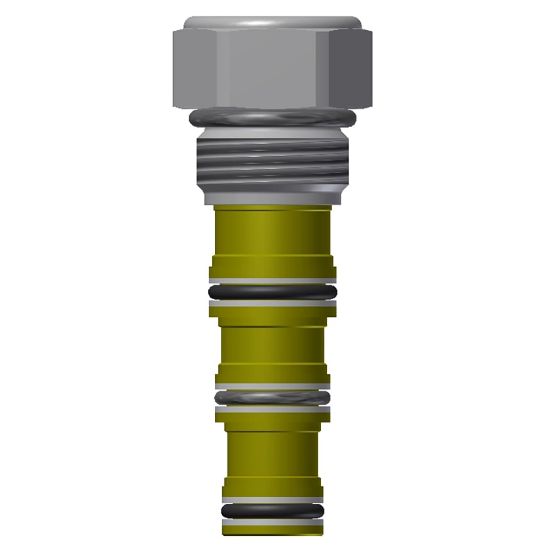

P08-4 - Cavity Plugs

Name: P08-4 - Cavity Plugs
SKU: P08-4
Price: 119.63 USD
Availability: InStock

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:

3 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P08-4

$119.63/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Number of Positions	4 way	Type/Configuration	All ports blocked
Cavity Size	C08	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	N/A
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Minimum Operating Temperature	-34 °C
Cavity Size	C08	Actuation Type	N/A
Configuration	All ports blocked	Operating Temperature	-30 to +250 °F
Flow Rate	N/A	Number of Positions	4 way
Division	Hydraulic Systems Division	Maximum Operating Pressure	350 bar
Weight	0.29 kg	Body Material	N/A
Installation Torque	49 Nm
