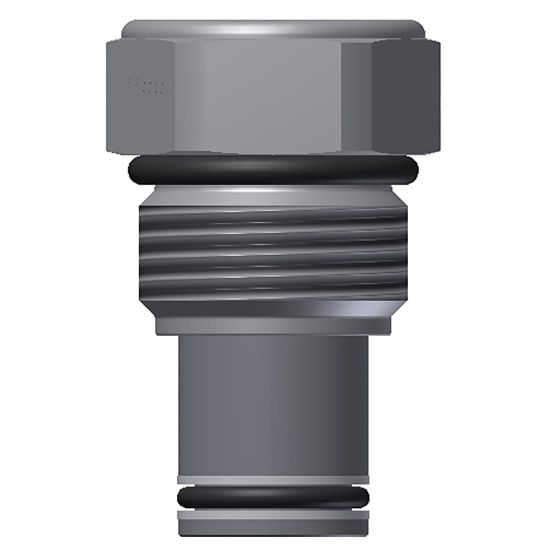

P10-2V - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU P10-2V

$83.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	All ports blocked
Number of Positions	2 way	Cavity Size	C10
Seal Material	Fluorocarbon	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	N/A	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Number of Positions	2 way
Flow Rate	N/A	Minimum Operating Temperature	-15 °F
Cavity Size	C10	Weight	0.18 kg
Division	Hydraulic Systems Division	Body Material	N/A
Installation Torque	55 lb-ft	Configuration	All ports blocked
Maximum Operating Pressure	350 bar	Actuation Type	N/A
Operating Temperature	-26 to +204 °C
