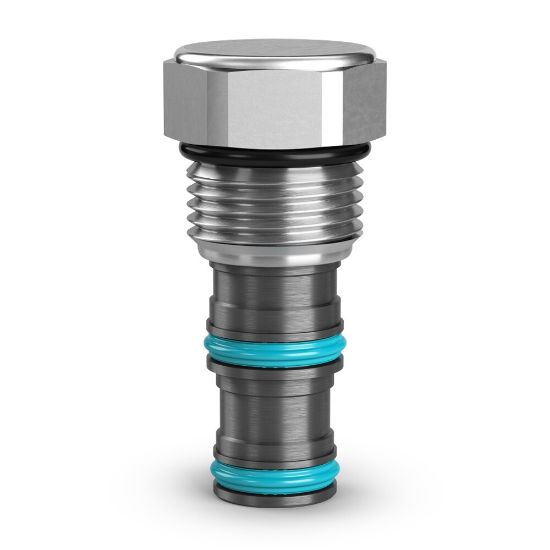

P10-3A - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	12 in stock

SKU P10-3A

$123.56/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cavity Size	C10	Number of Positions	3 way
Type/Configuration	Port 3 blocked	Division	Hydraulic Systems Division
Maximum Operating Pressure	5000 psi	Installation Torque	75 Nm
Body Material	N/A	Weight	0.18 kg
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	N/A
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cavity Size	C10	Minimum Operating Temperature	-30 °F
Operating Temperature	-34 to +121 °C	Configuration	Port 3 blocked
Flow Rate	N/A	Actuation Type	N/A
Number of Positions	3 way
