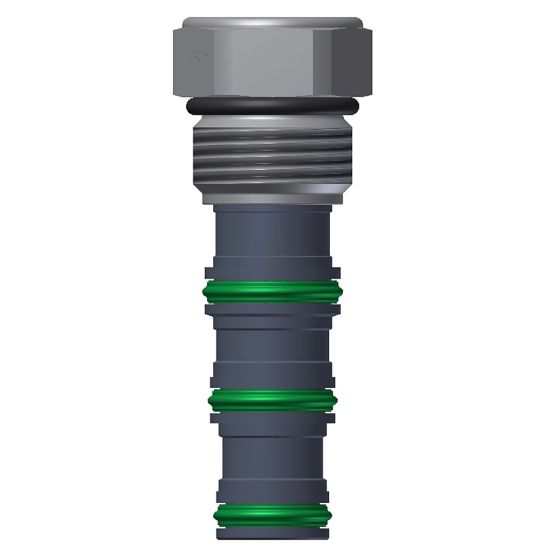

P10-4B - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU P10-4B

$122.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cavity Size	C10	Number of Positions	4 way
Type/Configuration	Port 3 blocked	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	N/A	Cavity Size	C10
Flow Rate	N/A	Operating Temperature	-34 to +121 °C
Configuration	Port 3 blocked	Minimum Operating Temperature	-34 °C
Number of Positions	4 way	Division	Hydraulic Systems Division
Installation Torque	75 Nm	Body Material	N/A
Actuation Type	N/A	Weight	0.18 kg
Maximum Operating Pressure	350 bar
