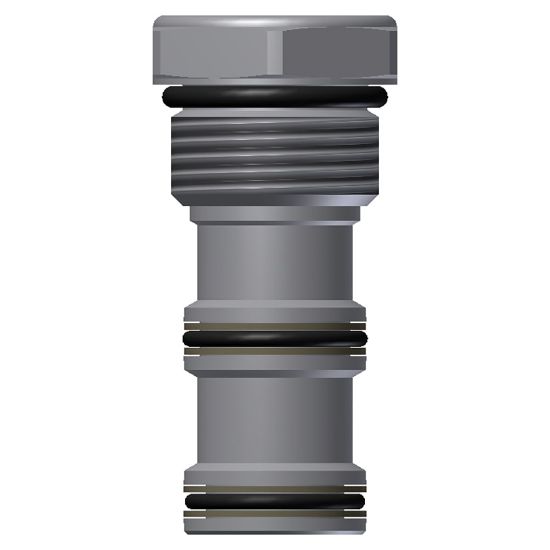

P12-3AV - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU P12-3AV

$218.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	Port 3 blocked
Cavity Size	C12	Number of Positions	3 way
Seal Material	Fluorocarbon	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	N/A
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Minimum Operating Temperature	-26 °C
Cavity Size	C12	Configuration	Port 3 blocked
Operating Temperature	-26 to +204 °C	Actuation Type	N/A
Flow Rate	N/A	Number of Positions	3 way
Division	Hydraulic Systems Division	Maximum Operating Pressure	5000 psi
Weight	0.34 kg	Body Material	N/A
Installation Torque	131 Nm
