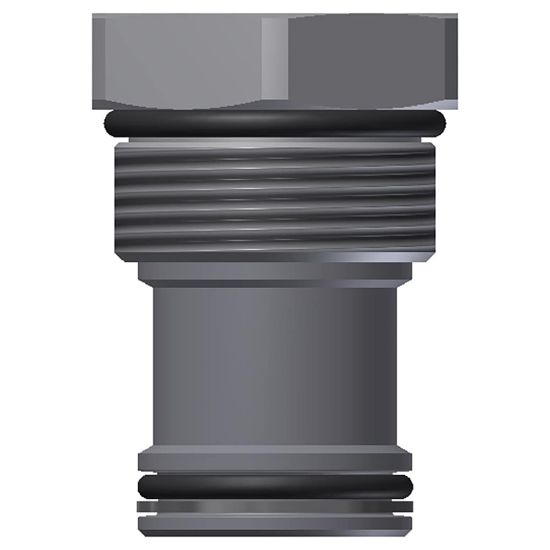

P16-2V - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU P16-2V

$218.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Type/Configuration	All ports blocked	Cavity Size	C16
Number of Positions	2 way	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Cartridge Systems Division	Body Material	N/A
Weight	0.75 lb	Division	Hydraulic Systems Division
Installation Torque	235 Nm	Maximum Operating Temperature	+400 °F
Maximum Flow Rate	N/A	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Minimum Operating Temperature	-15 °F
Cavity Size	C16	Number of Positions	2 way
Actuation Type	N/A	Operating Temperature	-26 to +204 °C
Maximum Operating Pressure	350 bar	Configuration	All ports blocked
Flow Rate	N/A
