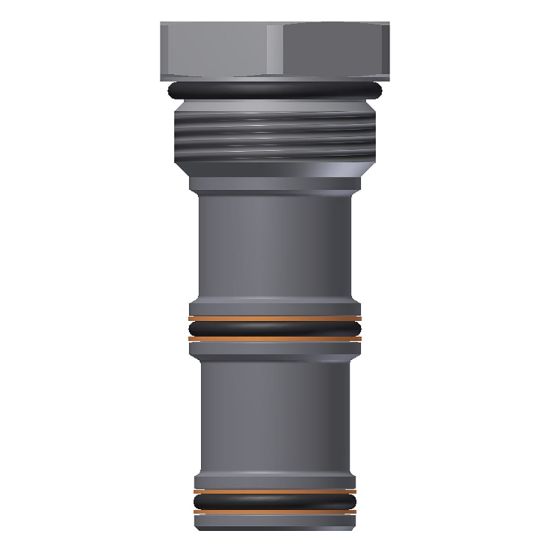

P16-3 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU P16-3

$198.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	3 way
Seal Material	Nitrile	Type/Configuration	All ports blocked
Cavity Size	C16	Cavity Size	C16
Minimum Operating Temperature	-30 °F	Operating Temperature	-34 to +121 °C
Actuation Type	N/A	Flow Rate	N/A
Configuration	All ports blocked	Number of Positions	3 way
Division	Hydraulic Systems Division	Body Material	N/A
Installation Torque	235 Nm	Maximum Operating Pressure	350 bar
Weight	0.34 kg	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	N/A
Division	Hydraulic Cartridge Systems Division
