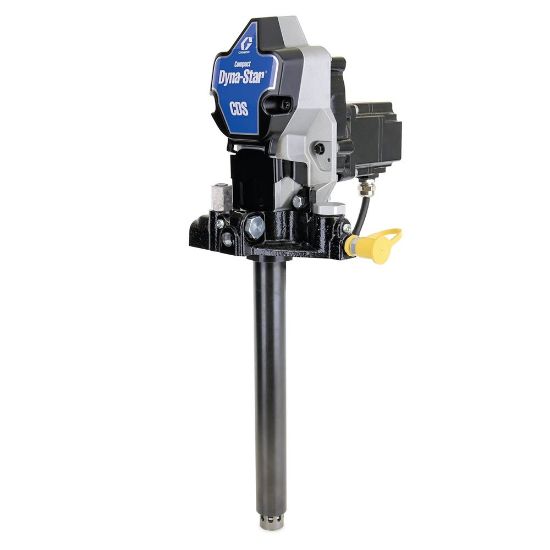

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CD1000

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1000

$3,904.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	27 lb	Maximum Input Amperage	10 A
Number of Pump Elements	1	IP Rating	IP69K
Maximum NLGI Grade	2	Minimum Voltage	18 VDC
Maximum Cycle Rate	64 CPM	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Power Rating	0.25 HP	Power Connection Type	Deutsch DT04-2P Housing
Overall Height	23.9 Inch	Overall Depth	7.63 Inch
Maximum Operating Temperature	149 deg F	Maximum Continuous Cycle Rate	64 CPM
Lower Type	Shovel	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Approvals	CE;RCM
Motor Type	Brushless DC	Maximum Voltage	30 VDC
Sound Power Level	<80 dB(A)	Control Options	Integrated electrical motor controller
Maximum Fluid Output Pressure	3500 PSI	Throat Seal Type	Hythane 181
Fluid Outlet Thread Gender	Female	Maximum cST Grade	NLGI #2 Grease cST
Minimum Operating Temperature	-40 deg F	Voltage	24 VDC
Overall Width	9.8 Inch
