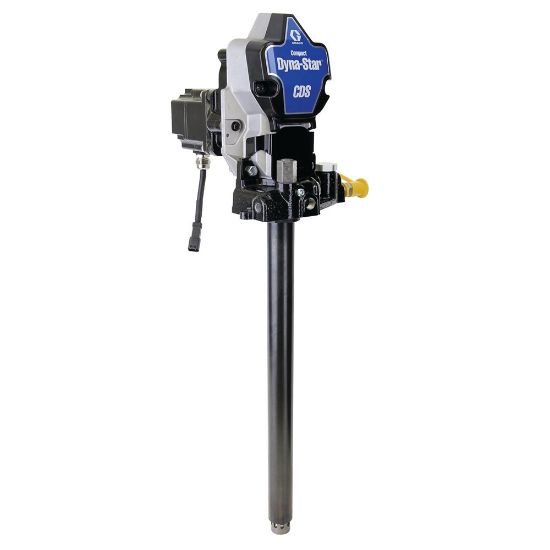

CD2000

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD2000

$4,066.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	30 lb
Maximum Working Pressure	3500 psi	Maximum Input Amperage	10 A
Overall Height	30 Inch	Maximum NLGI Grade	2
IP Rating	IP69K	Number of Pump Elements	1
Maximum Cycle Rate	64 CPM	Power Connection Type	Deutsch DT04-2P Housing
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Power Rating	0.25 HP
Maximum Continuous Cycle Rate	64 CPM	Overall Depth	7.63 Inch
Maximum Operating Temperature	149 deg F	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Lower Type	Shovel
Maximum Voltage	30 VDC	Motor Type	Brushless DC
Approvals	CE;RCM	Sound Power Level	<80 dB(A)
Control Options	Integrated electrical motor controller	Maximum Fluid Output Pressure	3500 PSI
Throat Seal Type	Hythane 181	Minimum Operating Temperature	-40 deg F
Fluid Outlet Thread Gender	Female	Maximum cST Grade	NLGI #2 Grease cST
Minimum Voltage	18 VDC	Overall Width	9.8 Inch
Voltage	24 VDC
