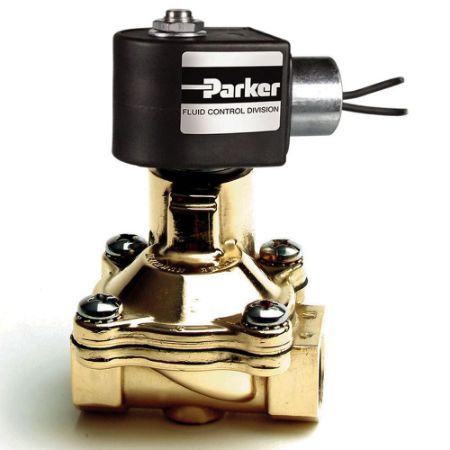

Chart 4 Solenoid Coils
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Coils are electrical devices that produce magnetic flux when electrical power is applied to the windings. Surrounding the coil is the metal solenoid enclosure and frame. Together with the plunger and stop, it forms the magnetic circuit that operates the valve. Without the enclosure, the magnetic circuit is not complete. Without a complete magnetic circuit, the magnetic field is reduced and valve performance suffers. Depending on the coil voltage and power rating, the pressure rating of the valve can vary. Solenoid enclosures come in a variety of constructions offering varying levels of protection against the elements and other forces.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | Input Voltage | Insulation Class | Ingress Protection Rating | Specifications Met | Coil Type | Power Consumption | Compatible Valve | Power Consumption | Input Voltage | Compatible Valve | Specifications Met | Ingress Protection Rating | Insulation Class | Coil Type | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CF4C01 | Backordered | 5 in stock | $95.72/each | EA | 24/60 | Class F | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 24/60 | For Chart 4 Compatible Pressure Vessels | CE - Low Voltage, EMC | NEMA 4 | F (155°C) | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | Fluid Control Division | |
| CF4C15 | Backordered | 2 Limited Stock | $95.73/each | EA | 240/60, 220/50 | Class F | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 240/60 | For Chart 4 Compatible Pressure Vessels | CURus Recognized Component | NEMA 4 | F (155°C) | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | Fluid Control Division | |
| CFGC15 | Backordered | 2 Limited Stock | $258.39/each | EA | 240/60, 220/50 | Class F | NEMA 1 | cURus Recognized Component; CE - Low Voltage, EMC | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 240/60 | For Chart 4 Compatible Pressure Vessels | CURus Recognized Component | NEMA 1 | F (155°C) | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | Fluid Control Division | |
| CFPH05 | Backordered | 7 in stock | $95.64/each | EA | 120/60, 110/50 | Class F | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | DIN 43650A / ISO 4400 | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 110/50 VAC | For Chart 4 Compatible Pressure Vessels | CE - Low Voltage, EMC | NEMA 4X | F (155°C) | DIN 43650A / ISO 4400 | Fluid Control Division | |
| CFPH15 | Backordered | 2 Limited Stock | $95.65/each | EA | 240/60, 220/50 | Class F | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | DIN 43650A / ISO 4400 | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 220/50 | For Chart 4 Compatible Pressure Vessels | CE - Low Voltage, EMC | NEMA 4X | F (155°C) | DIN 43650A / ISO 4400 | Fluid Control Division | |
| CH4C05 | Backordered | 2 Limited Stock | $95.72/each | EA | 120/60, 110/50 | Class H | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 110/50 VAC | For Chart 4 Compatible Pressure Vessels | CE - Low Voltage, EMC | NEMA 4X | H (180°C) | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | Fluid Control Division | |
| CH4C15 | Backordered | Backordered | $73.66/each | EA | 240/60, 220/50 | Class H | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 240/60 | For Chart 4 Compatible Pressure Vessels | CURus Recognized Component | NEMA 4X | H (180°C) | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | Fluid Control Division | |
| CHGC05 | 2 Limited Stock | Backordered | $304.33/each | EA | 120/60, 110/50 | Class H | NEMA 1 | cURus Recognized Component; CE - Low Voltage, EMC | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 110/50 VAC | For Chart 4 Compatible Pressure Vessels | CURus Recognized Component | NEMA 1 | H (180°C) | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | Fluid Control Division | |
| CHPH05 | Backordered | Backordered | $73.57/each | EA | 120/60, 110/50 | Class H | NEMA 4,4X | cURus Recognized Component; CE - Low Voltage, EMC | DIN 43650A / ISO 4400 | 11 | For Chart 4 Compatible Pressure Vessels | 11 W | 110/50 VAC | For Chart 4 Compatible Pressure Vessels | CE - Low Voltage, EMC | NEMA 4X | H (180°C) | DIN 43650A / ISO 4400 | Fluid Control Division |
