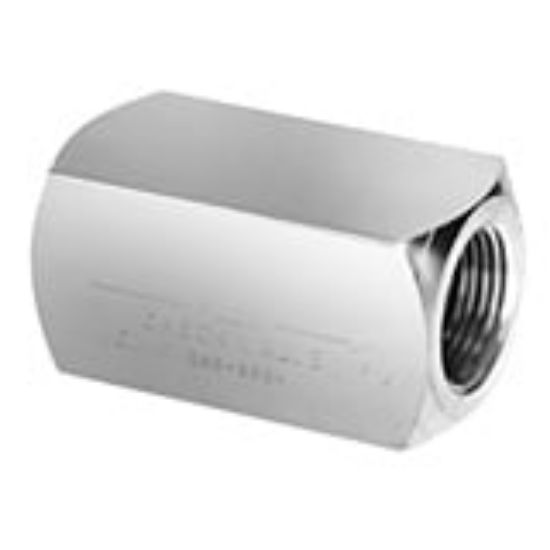

00339G3000 - Check Valve - 339 Series (female to female)

339 series Check valves allow free flow in one direction and provide positive checked flow in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in female to female connection only.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 00339G3000

$40.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	BSPP
Port Size (inch)	1/8	Operating Pressure	0 to 250
Port Size	1/8	Product Type	One Way Check Valve
Mounting Type	Inline	Flow Rate	35 to 323 SCFM (free flow)
Port Type	NPT	Operating Temperature	-18 to 82
Body Material	Brass	Lubricant	None
Flow Coefficient	0.66 to 6.0 Cv (free flow)	Division	Pneumatic Division
Options	Extended Temperature Version	Seal Material	Urethane
Media	Air	Needle Material	Brass
