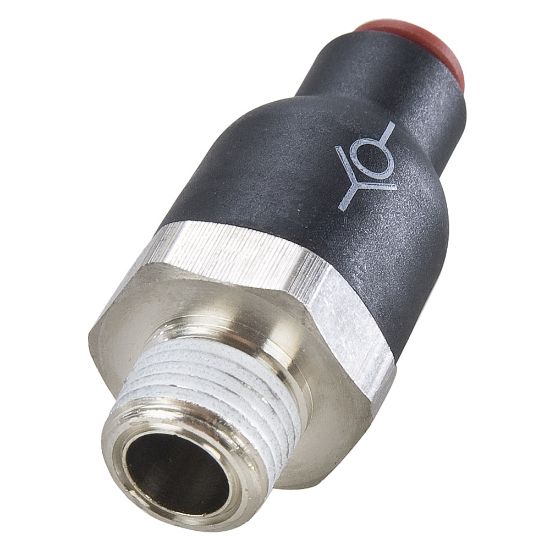

68PLCK-6M-4G - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU 68PLCK-6M-4G

$28.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Compressed Air
Thread Material	Plated Brass	Valve Configuration	One Way
Cracking Pressure	7 psi	Minimum Operating Temperature	1 °C
Connection 1 Size	Push-to-Connect	Product Style	Tube to Pipe
Application	Pneumatics	Connection 1 Thread Size	N/A
Maximum Operating Pressure	145 psi	Connection 1 Tube Outside Diameter	6 mm
Body Material	Nylon	Shape	Threaded
Connection Type	BSPP	Division	Fluid System Connectors Division
Connection 2 Size	BSPP	Maximum Operating Temperature	65 °C
Seal Material	Nitrile	Connection 2 Thread Size	N/A
Gripping Ring Material	Stainless Steel	Connection 2 Tube Outside Diameter	N/A
