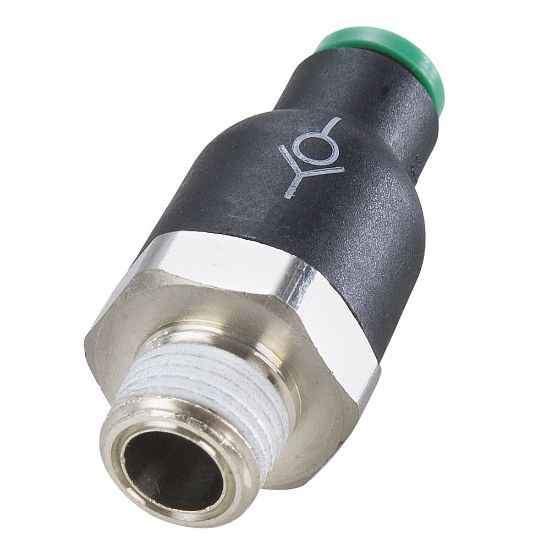

W68PLCKI-6M-4R - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU W68PLCKI-6M-4R

$27.57/each

Products specifications

Attribute name	Attribute value
UOM	EA	Gripping Ring Material	Stainless Steel
Connection 2 Tube Outside Diameter	N/A	Connection 2 Thread Size	N/A
Seal Material	Nitrile	Maximum Operating Temperature	65 °C
Connection Type	BSPT	Division	Fluid System Connectors Division
Connection 2 Size	BSPT	Minimum Operating Temperature	1 °C
Connection 1 Size	Push-to-Connect	Cracking Pressure	7 psi
Media	Compressed Air	Thread Material	Plated Brass
Valve Configuration	One Way	Connection 1 Thread Size	N/A
Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging	Product Style	Tube to Pipe
Shape	Threaded	Body Material	Nylon
Connection 1 Tube Outside Diameter	N/A	Maximum Operating Pressure	145 psi
