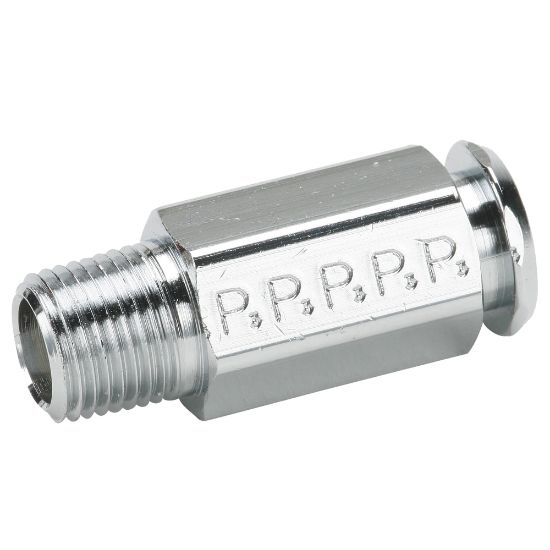

391P-6-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	18 in stock

SKU 391P-6-4

$68.79/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	3/8	Connection 2 Style	Male Pipe
Connection 2 Thread Size (inch)	1/4	Body Material	Chrome Plated Brass
Shape	Coupler Body	Style	Plug-in stem to Pipe
Connection 1 Style	Plug-in Stem	Connection 2 Insert Diameter (inch)	na
Application	Packaging	Dimensional Weight	0.5518884892086331 lb
Sleeve Material	Acetal Copolymer	Minimum Operating Temperature	0 °F
Maximum Operating Temperature	150 °F	Division	Fluid System Connectors Division
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	O-Ring Material	Buna N
Nut Material	Chrome Plated Brass	Body Material	Chrome Plated Brass
Maximum Operating Pressure	150 psi
