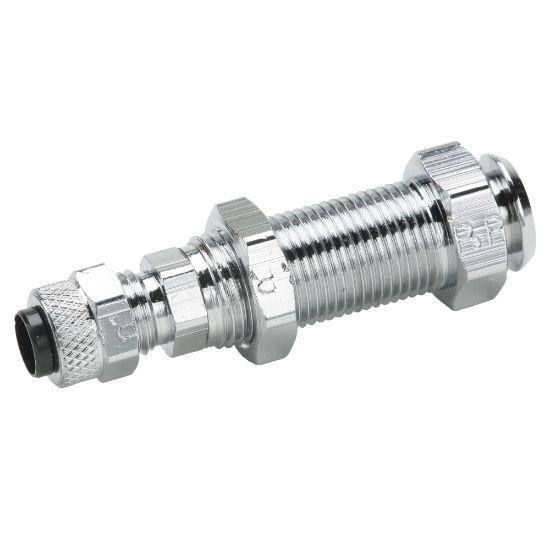

392P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Name: 392P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite
SKU: 392P-4-4
Price: 55.29 USD
Availability: InStock

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:

45 in stock

TOPEKA, KS	42
Olivette, MO	3

Partner Available:

188 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 392P-4-4

$55.29/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Body Material	Chrome Plated Brass
Shape	Bulkhead Body	Style	Tube to Plug-in stem
Connection 2 Style	Plug-in Stem	Connection 2 Insert Diameter (inch)	1/4
Maximum Operating Temperature	65 °C	Sleeve Material	Acetal Copolymer
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Division	Fluid System Connectors Division
Dimensional Weight	0.5518884892086331 lb	Application	Dental, Packaging, Laboratory, Car wash
O-Ring Material	Buna N	Maximum Operating Pressure	150 psi
Nut Material	Chrome Plated Brass	Body Material	Chrome Plated Brass
Minimum Operating Temperature	0 °F
