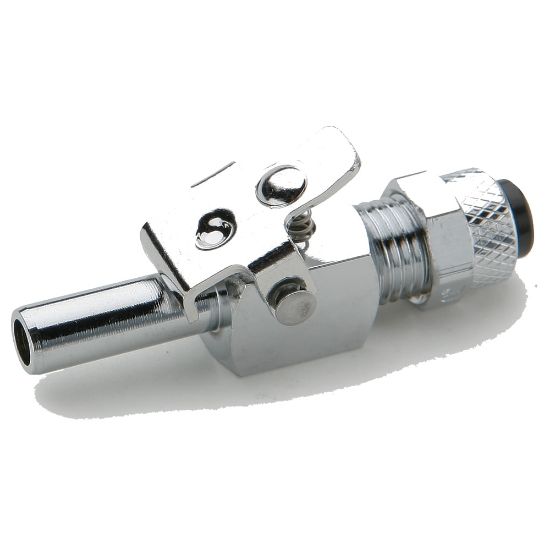

393P-6-6 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Name: 393P-6-6 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite
SKU: 393P-6-6
Price: 37.99 USD
Availability: InStock

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:

6 in stock

Olivette, MO

Partner Available:

27 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 393P-6-6

$37.99/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	3/8	Body Material	Chrome Plated Brass
Style	Tube to Plug-in stem	Connection 2 Style	Plug-in Stem
Connection 2 Insert Diameter (inch)	3/8	Shape	Through Type Insert
Application	Dental, Packaging, Laboratory, Car wash	Dimensional Weight	0.5518884892086331 lb
Nut Material	Chrome Plated Brass	O-Ring Material	Buna N
Maximum Operating Pressure	150 psi	Sleeve Material	Acetal Copolymer
Minimum Operating Temperature	-17 °C	Maximum Operating Temperature	65 °C
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Body Material	Chrome Plated Brass
Division	Fluid System Connectors Division
