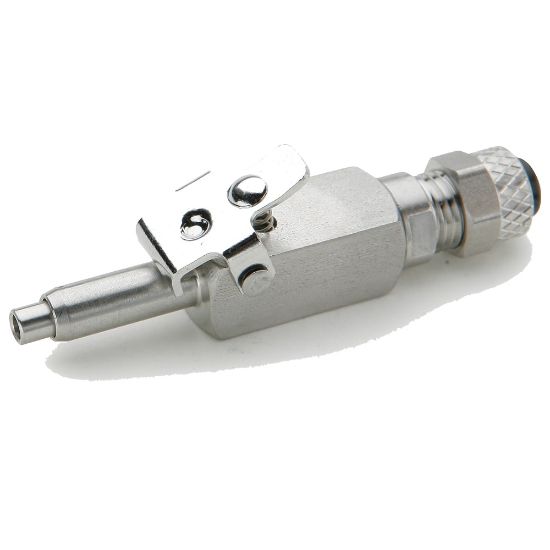

393PDSS-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 393PDSS-4-4

$416.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Plug-in stem	Connection 2 Style	Plug-in Stem
Connection 2 Insert Diameter (inch)	1/4	Shape	Shut-off Type Insert
Division	Fluid System Connectors Division	Application	Dental, Packaging, Laboratory, Car wash
Dimensional Weight	2.7594424460431655 lb	O-Ring Material	Fluorocarbon
Nut Material	316 Stainless Steel	Body Material	Stainless Steel
Maximum Operating Pressure	10 bar	Sleeve Material	Acetal Copolymer
Minimum Operating Temperature	-17 °C	Maximum Operating Temperature	65 °C
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
