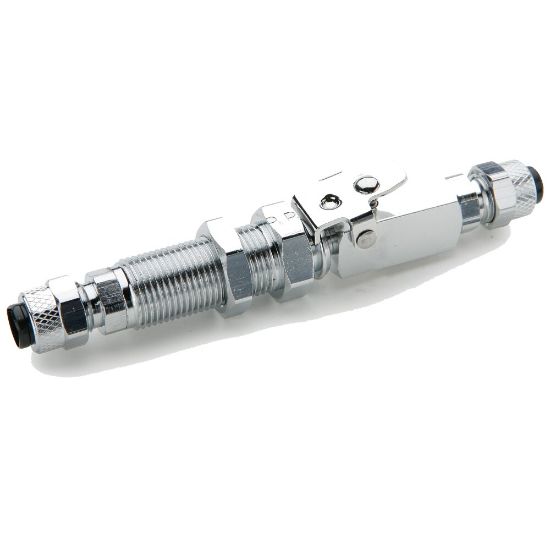

394PD-6-6 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	1 Limited Stock

SKU 394PD-6-6

$161.98/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	3/8	Connection 1 Style	Compression
Connection 2 Style	Compression	Style	Tube to Tube
Connection 1 Tube O.D. (inch)	3/8	Body Material	Chrome Plated Brass
Connection 2 Insert Diameter (inch)	na	Shape	Bulkhead Double end shutoff
Minimum Operating Temperature	-17 °C	Application	Dental, Packaging, Laboratory, Car wash
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Sleeve Material	Acetal Copolymer
Division	Fluid System Connectors Division	Maximum Operating Temperature	65 °C
Maximum Operating Pressure	150 psi	O-Ring Material	Buna N
Nut Material	Chrome Plated Brass	Body Material	Chrome Plated Brass
