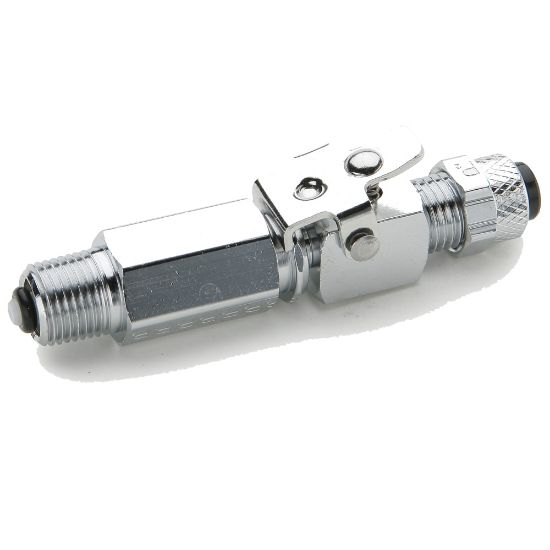

398P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	22 in stock

SKU 398P-4-4

$105.22/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Style	Male Pipe
Connection 2 Thread Size (inch)	1/4	Body Material	Chrome Plated Brass
Connection 2 Insert Diameter (inch)	na	Shape	Single End Shutoff
Division	Fluid System Connectors Division	Application	Dental
Dimensional Weight	0.4357014388489209 lb	Nut Material	Chrome Plated Brass
Maximum Operating Pressure	150 psi	O-Ring Material	Buna N
Body Material	Chrome Plated Brass	Minimum Operating Temperature	-17 °C
Maximum Operating Temperature	150 °F	Sleeve Material	Acetal Copolymer
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
