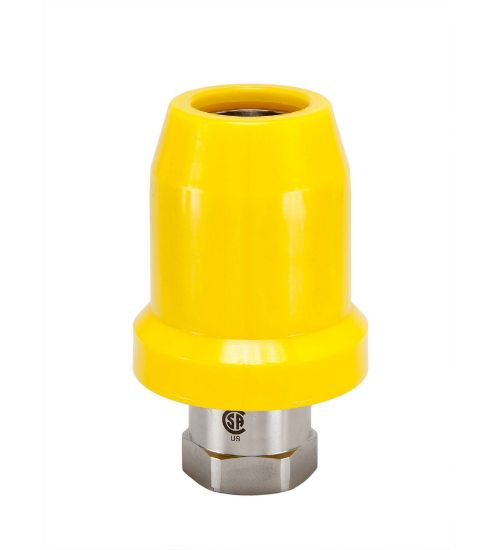

NGVC2-P36 - CNG Push-to-Connect Fueling Nozzles - NGV Nozzles Series

Located on CNG fueling dispensers, Parker’s NGVC2 Nozzle easily connects with FMS Series receptacles and others certified to ANSI/CSA/NGV1 standards

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	1 Limited Stock

SKU NGVC2-P36

$423.47/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3600 PSI
Connection Type	Push-to Connect	Division	Quick Coupling Division
Maximum Operating Temperature	185 °F	Lock Type	Ball Lock
Seal Material	Nitrile and Urethane	Fitting Connection Type	UNF
Minimum Operating Temperature	-40 °F	Specifications Met	ANSI/CSA NGV1 certified
Body Material	Stainless Steel	Flow Rate	2100 SCFM
Connection Thread Size	9/16 - 18 inch	Sleeve Type	Non-marring polyurethane
Maximum Operating Pressure	248 bar
