Coiled Air Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

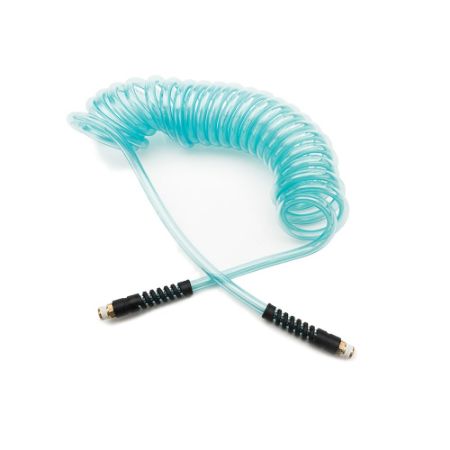

Parker’s NoMar™ Fast-Stor® Coiled Air Hose (95UFS series) is manufactured from a durable, abrasion-resistant, polyurethane. It is an extremely flexible coiled air hose for pneumatic applications. The non-marring polyurethane makes the NoMar™ Fast-Stor® Coiled Air Hose an excellent product that is safe for use around finished or delicate surfaces such as automotive repair or furniture and cabinetry manufacturing and withstands the abuse in automation and industrial pneumatic applications. For further information, please review the literature listed under the Product Support tab.

Markets:

• Industrial Pneumatics

• Industrial Automation

• Automotive service, assembly and repair

• Construction and finish carpentry

• Cabinetry and furniture manufacturing

• Fluid Handling

• Marine

Features/Benefits:

• Manufactured from 95 durometer, abrasion-resistant polyurethane

• Non-marring polyurethane is safe for use with delicate of finished surfaces

• Excellent memory characteristics over a wide temperature range

• Light weight and extreme flexibility

• Long service life in rugged applications

Applications:

• Air Hose

• Pneumatic assembly tools

• Blow guns

• Construction

• Carpentry

• Furniture manufacturing

• Manufacturing air drops

• Marine

• Water hose

Technical Specifications:

• Tube: Transparent blue polyurethane; additional colors available upon request

• Fittings: Brass NPT swivel; thermoplastic strain relief

• Pigtail Lengths - 8" and 16" with NPT swivel on each end

• Pre-applied thread sealant on all fittings

• Extended length approximately 92% of unit length

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Working Length (ft)	Maximum Working Pressure (psi)	Hose I.D. (inch)	Division	Application	Hose Outside Diameter	Minimum Operating Temperature	Burst Pressure	Maximum Operating Temperature	Compatible Fitting	Retracted Length	Disclaimer
95UFS-53-TBL-010	Backordered	Backordered	$52.75/each	EA	Blue, Transparent	10	175	3/16	Parflex Division	Air	5/16 inch	-40 °C	36.2 bar	180 °F	NoMar™ Fast-Stor® Fittings	7.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-53-TBL-025	Backordered	9 in stock	$92.14/each	EA	Blue, Transparent	25	175	3/16	Parflex Division	Air	5/16 inch	-40 °C	36.2 bar	180 °F	NoMar™ Fast-Stor® Fittings	21.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-BLK-015	Backordered	Backordered	$56.98/each	EA	Black	15	155	1/4	Parflex Division	Air	10 mm	-40 °C	32.1 bar	82 °C	1/4" NPT	9 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-BLK-025	Backordered	Backordered	$77.59/each	EA	Black	25	155	1/4	Parflex Division	Air	3/8 inch	-40 °C	465 psi	180 °F	NoMar™ Fast-Stor® Fittings	16 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-BLU-015	Backordered	Backordered	$56.72/each	EA	Blue	15	155	1/4	Parflex Division	Air	3/8 inch	-40 °C	32.1 bar	82 °C	1/4" NPT	9 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-BLU-025	Backordered	11 in stock	$100.87/each	EA	Blue	25	155	1/4	Parflex Division	Air	3/8 inch	-40 °C	465 psi	180 °F	1/4" NPT	16 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-RED-015	Backordered	Backordered	$56.72/each	EA	Red	15	155	1/4	Parflex Division	Air	10 mm	-40 °C	32.1 bar	180 °F	NoMar™ Fast-Stor® Fittings	9 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-RED-025	Backordered	1 Limited Stock	$100.87/each	EA	Red	25	155	1/4	Parflex Division	Air	10 mm	-40 °C	32.1 bar	82 °C	1/4" NPT	16 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-TBL-010	Backordered	47 in stock	$69.44/each	EA	Blue, Transparent	10	155	1/4	Parflex Division	Air	10 mm	-40 °F	465 psi	82 °C	NoMar™ Fast-Stor® Fittings	5.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-TBL-015	Backordered	20 in stock	$83.54/each	EA	Blue, Transparent	15	155	1/4	Parflex Division	Air	10 mm	-40 °C	465 psi	82 °C	NoMar™ Fast-Stor® Fittings	9 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-TBL-020	Backordered	28 in stock	$94.34/each	EA	Blue, Transparent	20	155	1/4	Parflex Division	Air	10 mm	-40 °C	465 psi	82 °C	NoMar™ Fast-Stor® Fittings	13 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-TBL-025	Backordered	Backordered	$80.09/each	EA	Blue, Transparent	25	155	1/4	Parflex Division	Air	3/8 inch	-40 °F	32.1 bar	82 °C	NoMar™ Fast-Stor® Fittings	16 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-YEL-015	Backordered	Backordered	$56.72/each	EA	Yellow	15	155	1/4	Parflex Division	Air	3/8 inch	-40 °C	465 psi	180 °F	1/4" NPT	9 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-64-YEL-025	Backordered	Backordered	$77.59/each	EA	Yellow	25	155	1/4	Parflex Division	Air	3/8 inch	-40 °C	32.1 bar	180 °F	1/4" NPT	16 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-85-TBL-010	Backordered	Backordered	$124.23/each	EA	Blue, Transparent	10	140	5/16	Parflex Division	Air	12 mm	-40 °F	420 psi	180 °F	NoMar™ Fast-Stor® Fittings	5.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-85-TBL-015	Backordered	Backordered	$134.02/each	EA	Blue, Transparent	15	140	5/16	Parflex Division	Air	15/32 inch	-40 °C	420 psi	180 °F	3/8" NPT	8.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-85-TBL-020	Backordered	Backordered	$146.23/each	EA	Blue, Transparent	20	140	5/16	Parflex Division	Air	15/32 inch	-40 °C	420 psi	180 °F	NoMar™ Fast-Stor® Fittings	12.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-85-TBL-025	Backordered	Backordered	$151.65/each	EA	Blue, Transparent	25	140	5/16	Parflex Division	Air	15/32 inch	-40 °C	420 psi	82 °C	NoMar™ Fast-Stor® Fittings	15.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-96-TBL-010	Backordered	Backordered	$110.33/each	EA	Blue, Transparent	10	135	3/8	Parflex Division	Air	9/16 inch	-40 °C	405 psi	180 °F	NoMar™ Fast-Stor® Fittings	6 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
95UFS-96-TBL-015	Backordered	Backordered	$134.05/each	EA	Blue, Transparent	15	135	3/8	Parflex Division	Air	9/16 inch	-40 °C	405 psi	82 °C	3/8" NPT	9.5 inch	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
