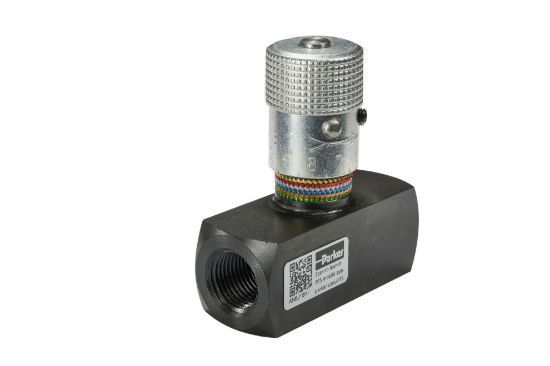

9N600B-V - Colorflow In-Line General Purpose Needle Valve – N Series

Parker's Colorflow N series hydraulic flow control, in-line needle valves meters flow in both directions or provides a reliable shut off. This needle valve flow control is used in air and oil applications and has standard and fine metering options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	6 in stock

SKU 9N600B-V

$230.41/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Seal Material	Fluorocarbon	Connection Type	BSPP
Actuation Type	Manual	Connection Size	3/8
Minimum Operating Temperature	-15	Maximum Flow Rate	8
Knob Option	Standard Knob	Needle option	Standard
Maximum Operating Pressure	2000	Maximum Operating Temperature	+400° F
Mounting Type	Inline	Brand	Colorflow
Product Style	Needle Valve	Minimum Operating Temperature	-26 °C
Media	Oil	Connection Type	BSPP
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	8 Gal/min
Maximum Operating Temperature	205 °C	Seal Material	Fluorocarbon
Actuation Type	Manual	Body Material	Brass
Maximum Operating Pressure	2000 psi
