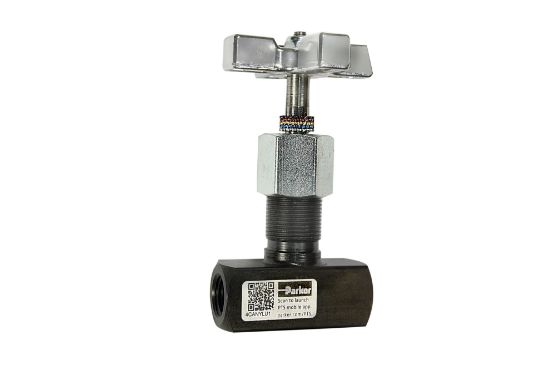

MV481S - Colorflow In-Line Precision Needle Valve – MV Series

Parker’s Colorflow MV series valves is a high precision adjust needle valve that meters flow in both directions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU MV481S

$150.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Seal Material	Nitrile	Flow Rate	n/a
Connection Type	NPT	Actuation Type	Manual
Minimum Operating Temperature	-40	Maximum Flow Rate	5
Maximum Operating Pressure	N/A	Function	Metering Valve
Maximum Operating Temperature	N/A	Needle Type	Standard; 30° Taper
Mounting Style	Right Angle	Connection Size	4
Minimum Operating Temperature	-40° °F	Connection Size	4
Function	Metering Valve	Media	Oil
Flow Rate	N/A	Configuration	In-line
Mounting Style	In-line	Needle Type	Standard; 30° Taper
Brand	Colorflow	Body Material	Steel
Actuation Type	Manual	Maximum Operating Pressure	345 bar
Maximum Operating Temperature	-40 °C	Seal Material	Nitrile
Connection Type	NPT	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	19 L/min
