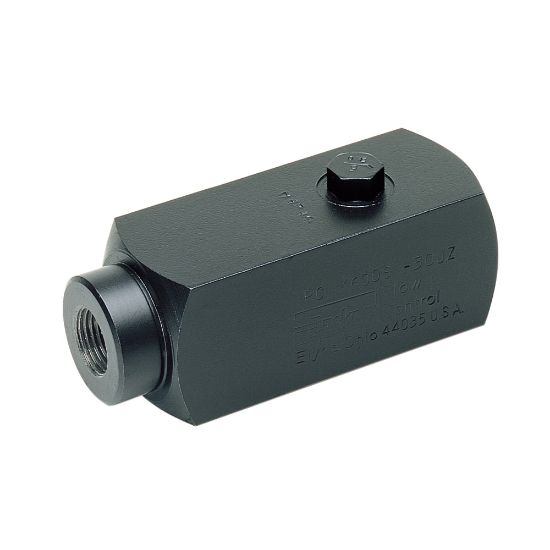

PCK820S-1.50 - Colorflow In-Line Pressure Compensated Valve - PC*K Series

Parker’s Colorflow PC*K series in-line hydraulic valve is a pressure compensated flow control valve that regulates flow at a selected rate within 5% regardless of fluctuations in inlet and outlet flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 168 days
Partner Available:	Backordered

SKU PCK820S-1.50

$308.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Connection Type	SAE	Maximum Flow Rate	6
Minimum Flow Rate	0.6	Reverse Check	Without Check
Connection Size	8	Brand	Colorflow
Mounting Type	Inline	Configuration	Female-Female
Actuation Type	Hydraulic	Flow Rate	N/A
Media	Oil	Connection Size	8
Function	Pressure Compensated Flow Control	Minimum Operating Temperature	-40° °F
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	6 Gal/min
Connection Type	SAE	Maximum Operating Temperature	+250 °F
Maximum Pressure Setting	N/A	Seal Material	Nitrile
Minimum Flow Rate	0.6	Reverse Check	Without Check
Maximum Operating Pressure	3000 psi	Body Material	Steel
