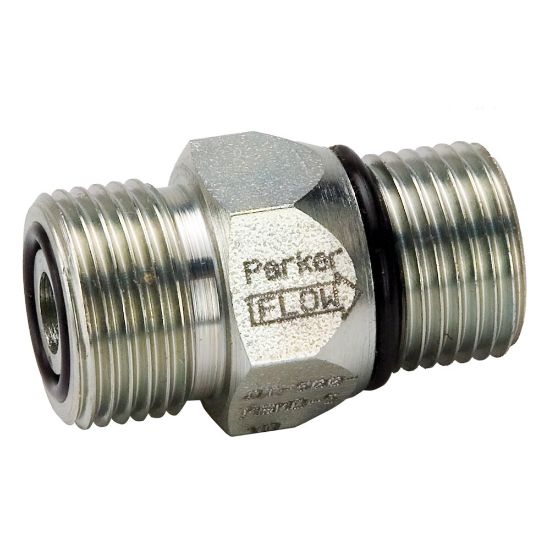

DT-1000-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 11 days
Partner Available:	Backordered

SKU DT-1000-MSMO-5

$107.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Outlet Port Size (inch)	1 5/16 - 12 UN
Inlet Port Size (inch)	1 7/16 - 12 UN	Inlet Port Connection Type	Male Seal-Lok
Outlet Port Connection Type	Male SAE O-ring Straight Thread	Configuration	N/A
Seat Type	Metal seal	Actuation Type	Mechanical
Dimensional Weight	0.12582258992805753 lb	Mounting Type	Threaded
Maximum Operating Pressure	5000 psi	Body Material	Steel
Body Size	1 inch	Seal Material	Metal & Elastomeric
Maximum Operating Temperature	250 °F	Maximum Flow Rate	N/A
Connection Type	Male Seal-Lok ORFS to Male ORB	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Flow Direction	N/A
Connection Size	1- 5/16 - 12 UN

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
