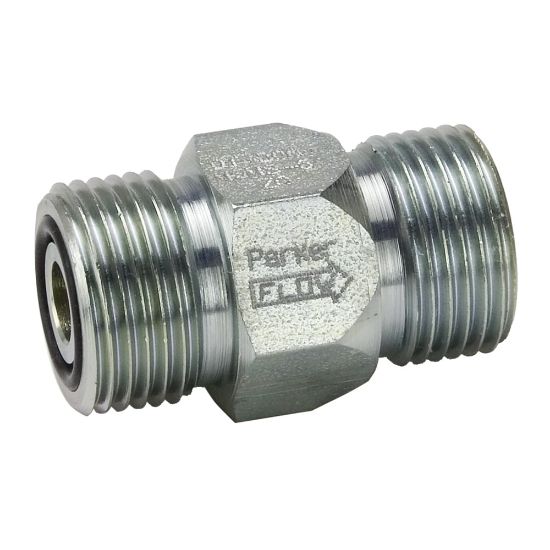

DT-1000-MSMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	Backordered

SKU DT-1000-MSMS-5

$107.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Inlet Port Size (inch)	1 7/16 - 12 UN
Outlet Port Size (inch)	1 7/16 - 12 UN	Inlet Port Connection Type	Male Seal-Lok
Outlet Port Connection Type	Male Seal-Lok	Body Size	1 inch
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Maximum Flow Rate	N/A	Connection Type	Male Seal-Lok to Male Seal-Lok
Flow Direction	N/A	Connection Size	1- 5/16 - 12 UN
Seal Material	Metal & Elastomeric	Mounting Type	Threaded
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Pressure	5000 psi	Seat Type	Metal seal
Actuation Type	Mechanical	Dimensional Weight	0.12582258992805753 lb
Configuration	N/A
