DT-370-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series

Name: DT-370-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series
SKU: DT-370-MSMO-5
Price: 49.26 USD
Availability: InStock

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:

28 in stock

Olivette, MO	22
TOPEKA, KS	6

Partner Available:

22 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DT-370-MSMO-5

$49.26/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Outlet Port Size (inch)	5000
Inlet Port Connection Type	Male Seal-Lok	Inlet Port Size (inch)	11/16 - 16 UN
Outlet Port Connection Type	Male SAE O-ring Straight Thread	Connection Size	9/16 - 18 UNF
Maximum Operating Temperature	250 °F	Body Size	3/8 inch
Seal Material	Metal & Elastomeric	Maximum Flow Rate	N/A
Mounting Type	Threaded	Minimum Operating Temperature	-40 °F
Flow Direction	N/A	Actuation Type	Mechanical
Configuration	N/A	Maximum Operating Pressure	5000 psi
Seat Type	Metal seal	Dimensional Weight	0.015995203836930455 lb
Connection Type	Male Seal-Lok ORFS to Male ORB	Division	Quick Coupling Division
Body Material	Steel

Customers who bought this item also bought

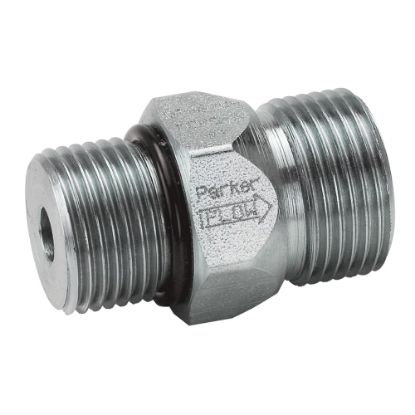

DT-370-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series
