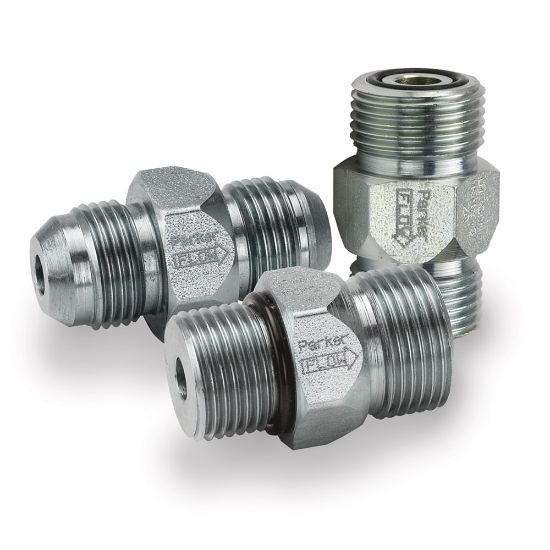

DT-500-FSMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3 in stock

SKU DT-500-FSMS-5

$94.12/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Outlet Port Size (inch)	5000
Outlet Port Connection Type	Male Seal-Lok	Inlet Port Size (inch)	13/16 - 16 UN
Inlet Port Connection Type	Female Seal-Lok	Mounting Type	Threaded
Minimum Operating Temperature	-40 °F	Body Material	Steel
Actuation Type	Mechanical	Maximum Operating Pressure	5000 psi
Configuration	N/A	Seat Type	Metal seal
Division	Quick Coupling Division	Connection Type	Female Seal-Lok inlet Male Seal-Lok outlet
Flow Direction	N/A	Connection Size	13/16 - 16 UN
Body Size	1/2 inch	Maximum Operating Temperature	250 °F
Seal Material	Metal & Elastomeric	Maximum Flow Rate	N/A
