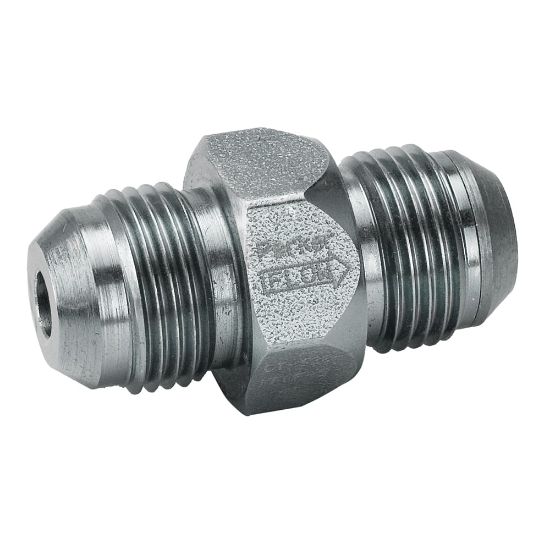

DT-500-MFMF-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 4 days
Partner Available:	13 in stock

SKU DT-500-MFMF-5

$81.46/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Inlet Port Size (inch)	3/4 - 16 UNF	Outlet Port Size (inch)	3/4 - 16 UNF
Inlet Port Connection Type	Male JIC 37 degree	Outlet Port Connection Type	Male JIC 37 degree
Maximum Working Pressure (psi)	4500	Maximum Operating Pressure	4500 psi
Body Material	Steel	Seal Material	Metal
Body Size	1/2 inch	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Maximum Flow Rate	N/A
Connection Type	Male Flare JIC to Male Flare JIC	Minimum Operating Temperature	-40 °F
Connection Size	3/4 - 16 UNF	Flow Direction	N/A
Configuration	N/A	Dimensional Weight	0.02670863309352518 lb
Actuation Type	Mechanical	Seat Type	Metal seal
Mounting Type	Threaded
