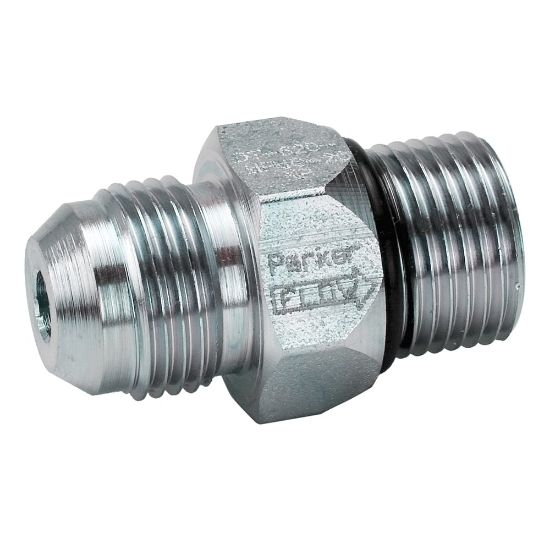

DT-620-MFMO-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	4 in stock

SKU DT-620-MFMO-5

$174.06/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Outlet Port Size (inch)	5000	Inlet Port Connection Type	Male JIC 37 degree
Inlet Port Size (inch)	7/8 - 14 UNF	Outlet Port Connection Type	Male SAE O-ring Straight Thread
Maximum Working Pressure (psi)	3500	Connection Size	7/8 - 14 UNF
Flow Direction	N/A	Seat Type	Metal seal
Configuration	N/A	Dimensional Weight	0.05341726618705036 lb
Mounting Type	Threaded	Minimum Operating Temperature	-40 °F
Body Material	Steel	Actuation Type	Mechanical
Maximum Operating Pressure	3500 psi	Maximum Operating Temperature	250 °F
Body Size	5/8 inch	Seal Material	Metal & Elastomeric
Connection Type	Male Flare JIC to Male ORB	Maximum Flow Rate	N/A
Division	Quick Coupling Division
