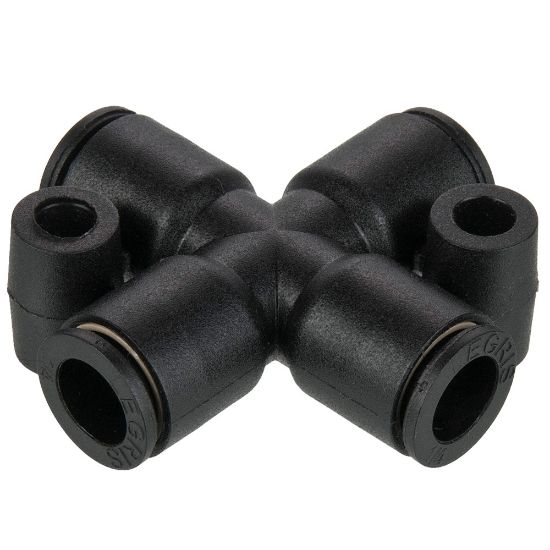

347PLP-8M - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	23 in stock

SKU 347PLP-8M

$13.34/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Cross
Connection 1 Size	8 mm	Connection 2 Size	8 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Product Style	Tube to Tube	Connection 2 Type	Push-to-Connect
Connection 3 Size	8 mm	Connection 3 Type	Push-to-Connect
Body Material	Glass-Reinforced Nylon	Connection 1 Tube Outside Diameter	5/16" / 8 mm (O.D.)
Connection 2 Tube Outside Diameter	5/16" / 8 mm (O.D.)	Connection 4 Size	8 mm
Connection 4 Type	Push-to-Connect	Specifications Met	ISO 14743
Application	Pneumatics	Tube Material	Nylon Semi-Rigid
Connection Type	NPTF	Division	Fluid System Connectors Division
Body Material	Glass Reinforced Nylon 6.6
